Maxgrip

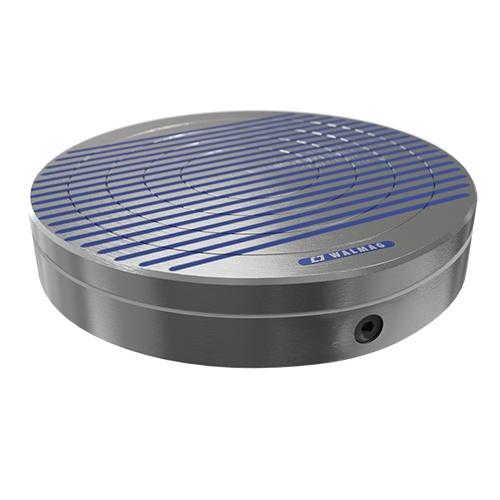

Round Permanent Magnetic Chuck for Grinding and Turning

Key Features

  • Double Magenetic System
  • Continuous Adjustment of Holding Force
  • Top Plate with Parallel Pole Configuration
  • 160N/cm2 Holding Force - Minimum Workpiece Size 40 x 8mm

Description

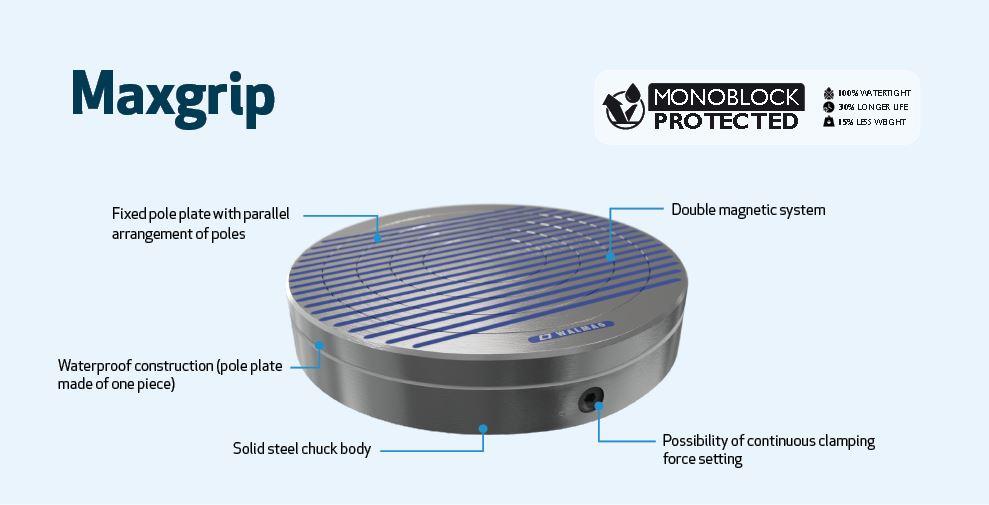

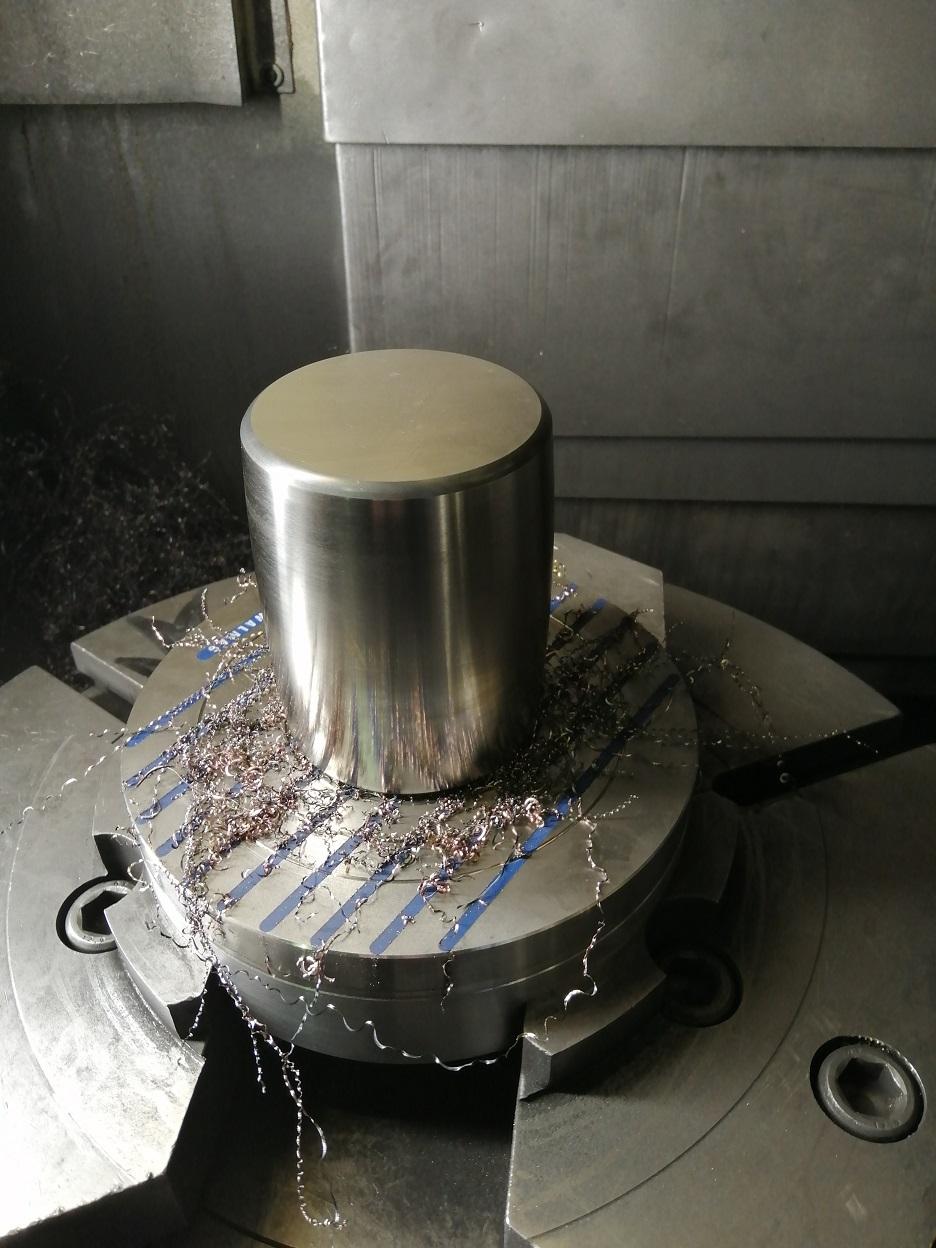

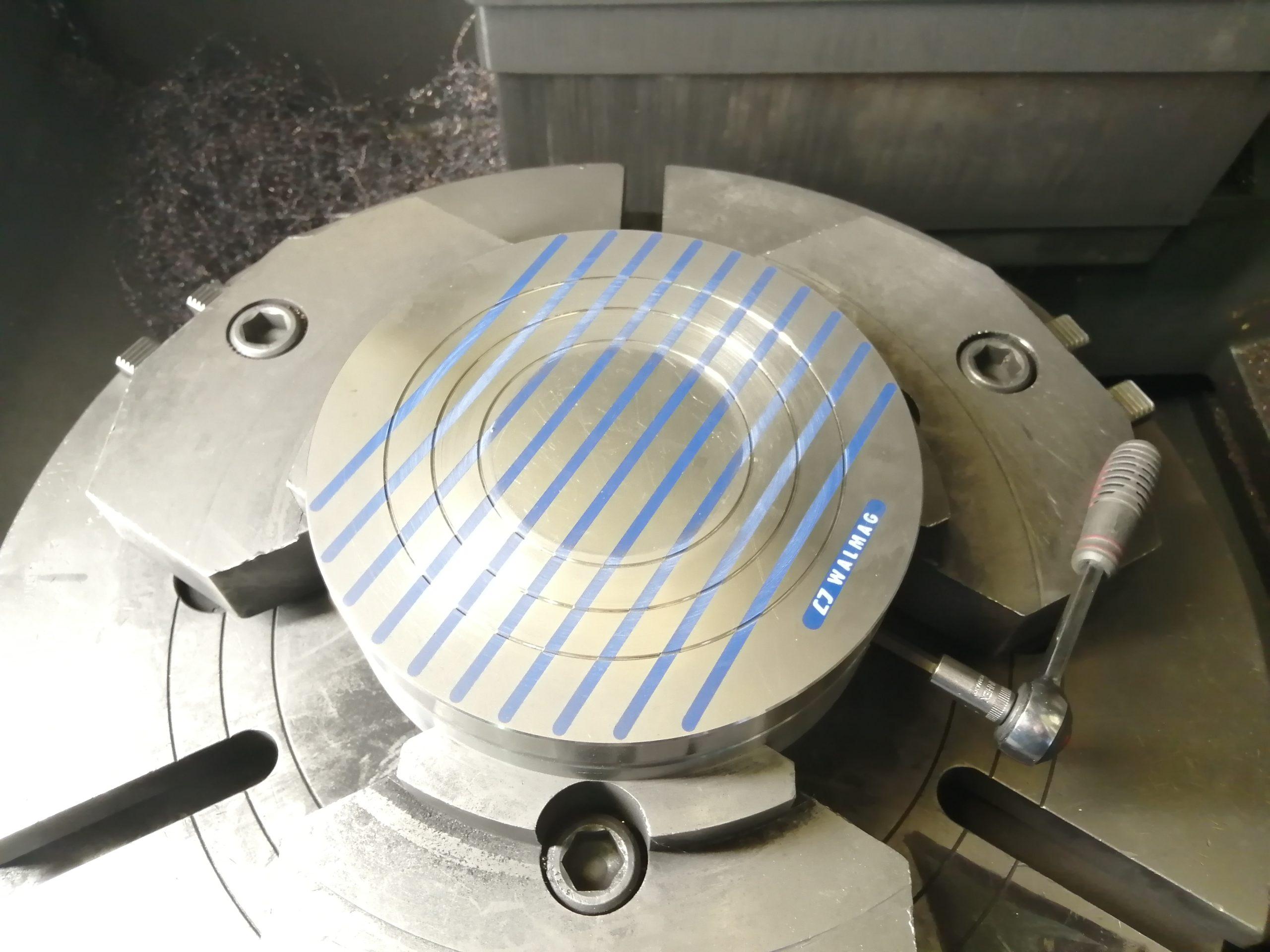

Permanent circular magnetic chuck Maxgrip stands out for its high clamping force and versatility in use. The combination of solid top plate with relatively fine parallel pole arrangement and possibility to continuously control the clamping force means very easy centering of the workpieces during turning or grinding operations.Solid steel bodyTop plate with parallel pole configurationContinuous adjustment of the holding forceWaterproof designDouble magnetic system

Estimated delivery: 3-5 Working Days (subject to availability)

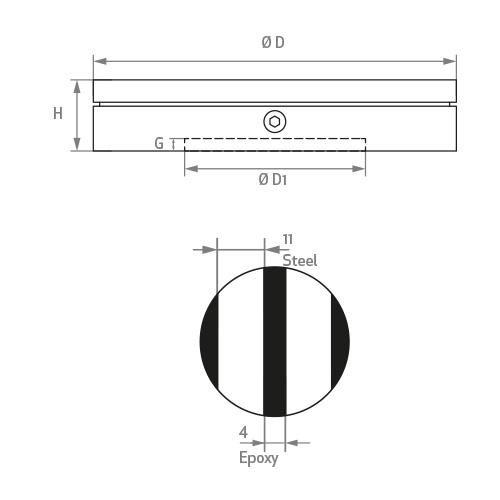

Dimensions

# Part No Diameter (mm) Height (mm) Price
1 MAXG200 200 57 £1,319.00
1 MAXG250 250 57 £1,616.00
1 MAXG300 300 57 £2,030.00
1 MAXG350 350 57 £2,861.00
1 MAXG400 400 57 £3,691.00
