Mechanical Centric Vices
Mechanically Actuated Self-Centring Vice
Key Features
- Repetition Accuracy of 5 micron
- Extremely High Clamp Forces
- Low wear due to Nitrogen Hardened Surfaces
- Can be Adapted to suit other manufacturers Zero Point Systems
Description
BEST mechanical centric vices are a no compromise solution to varying 4th and 5th axis work. BEST have focused on the production of high accuracy, high rigidity vices. These vices are suitable for both internal and external clamping. They offer very high clamping forces and repeatability of 0.005mm and a centring accuracy of 0.01mm. The machincal vices can be converted to RPCG type to suit the BEST Realpoint Zero Point System
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Length (mm) | Width (mm) | Height (mm) | Max. Grip Force (kN) | Stroke per Jaw (mm) | Clamping Range | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

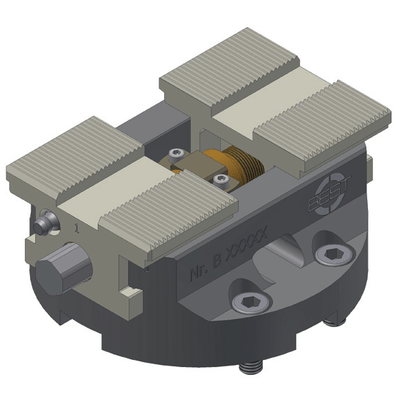

| 1 | BSM-115-SWBA | 115 | 115 | 55.5 | 48 | 15 | 0-100 |
|
£1,193.00 | ||

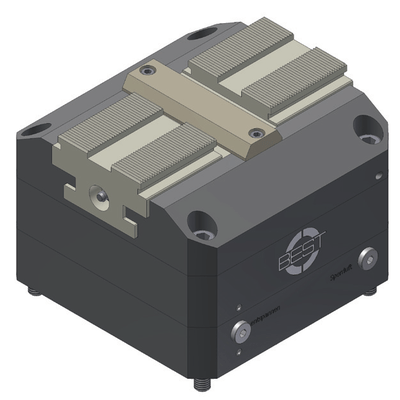

| 2 | BSM-115-KV | 115 | 115 | 49 | 48 | 15 | 0-100 |
|
£1,165.00 | ||

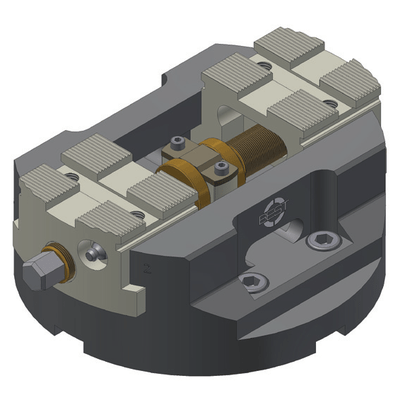

| 3 | BSM-140 | 140 | 140 | 70 | 52 | 25 | 0-120 |
|
£1,390.00 | ||

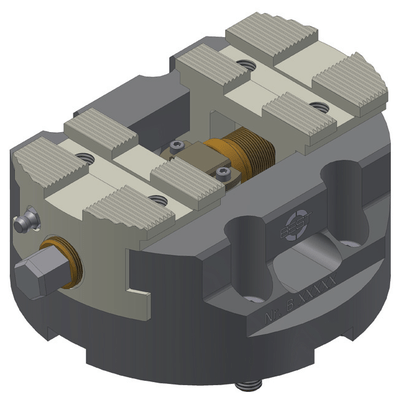

| 4 | BSM-180 | 180 | 180 | 82 | 60 | 35 | 0-160 |
|
£1,805.00 | ||

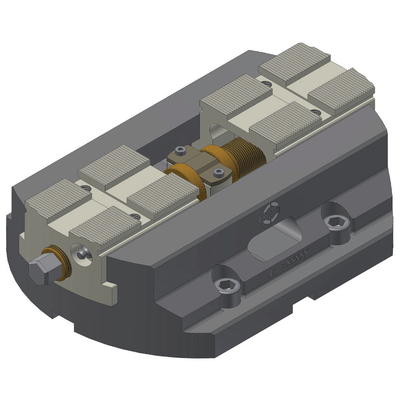

| 5 | BSM-250 | 250 | 250 | 82 | 100 | 35 | 0-250 |
|
£2,735.00 | ||
| 6 | BSM-400 | 400 | 400 | 112 | 80 | 45 | 0-400 | £ Price on application | n/a | ||

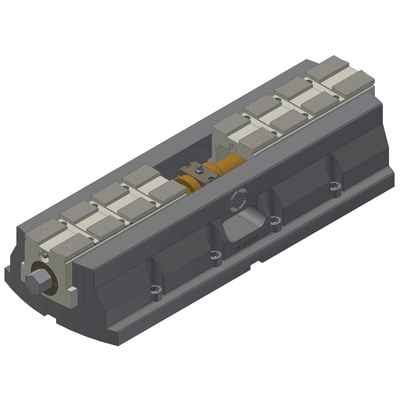

| 7 | BSM-500 | 500 | 500 | 112 | 80 | 55 | 0-500 |
|
£4,890.00 |
