Micromag
Compact Magnetic Filtration
Key Features
- High collection capacity relative to size
- No reduction in pressure or flow
- Easy clean
- Rapid return on investment
Description
Eclipse Magnetic Filtration produce a range of products to filter ferrous materials from your CNC machine's cutting fluids and oils. Magnetic filtration is a positive contribution to companies' environmental policies and ISO 14001 accreditation. Magnetic filtration requires no consumable or disposable products. It extracts 100% of ferrous contamination, drastically reducing the use of disposable filter media. Eclipse Micromag is a compact magnetic filter for standard machine filtration and smaller wash stations. Micromag is compact in size but has massive holding capacity. Units hold 1kg, 2kg, and 4kg of contamination respectively. Micromag is available in a range of sizes to suit a range of applications up to a pressure of 80 bar and a temperature of 140 degrees. Specific Micromag units are selelcted for an application based on required flow rate, maximum temperature and pressure as well as capacity to hold contaminates.
Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Flow Rate (ltrs/min) | Max. Pressure (bar) | Temperature Range (C) | Contamination Capacity (kg) | Construction | Price | ||
|---|---|---|---|---|---|---|---|---|---|

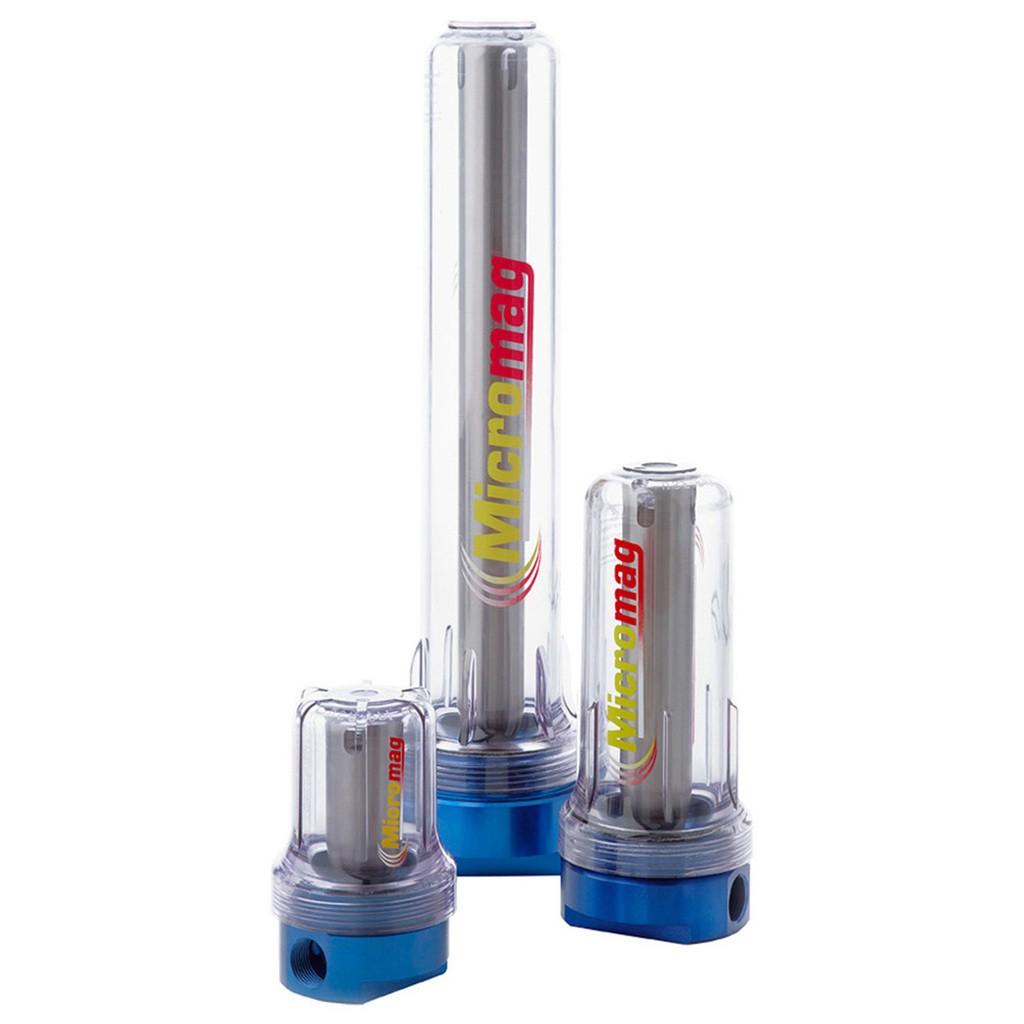

| 1 | MM5 | 70 | 12 | 5 - 50 | 1 | SAN housing | Aluminium Lid | £507.00 | ||
| 1 | MM10 | 100 | 12 | 5 - 50 | 2 | SAN housing | Aluminium Lid | £853.00 | ||
| 1 | MM20 | 150 | 12 | 5 - 50 | 4 | SAN housing | Aluminium Lid | £1,365.00 | ||
| 1 | MM5HP50 | 70 | 50 | 0 - 140 | 1 | Full aluminium construction | £861.00 | ||
| 1 | MM10HP50 | 100 | 50 | 0 - 140 | 2 | Full aluminium construction | £1,212.00 | ||
| 1 | MM20HP50 | 150 | 50 | 0 - 140 | 4 | Full aluminium construction | £1,786.00 | ||

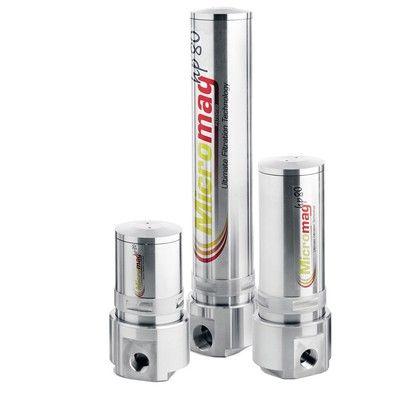

| 1 | MM5HP80 | 70 | 80 | 0 - 140 | 1 | Full stainless steel construction | £1,034.00 | ||
| 1 | MM10HP80 | 100 | 80 | 0 - 140 | 2 | Full stainless steel construction | £1,458.00 | ||
| 1 | MM20HP80 | 150 | 80 | 0 - 140 | 4 | Full stainless steel construction | £2,137.00 |
