Description

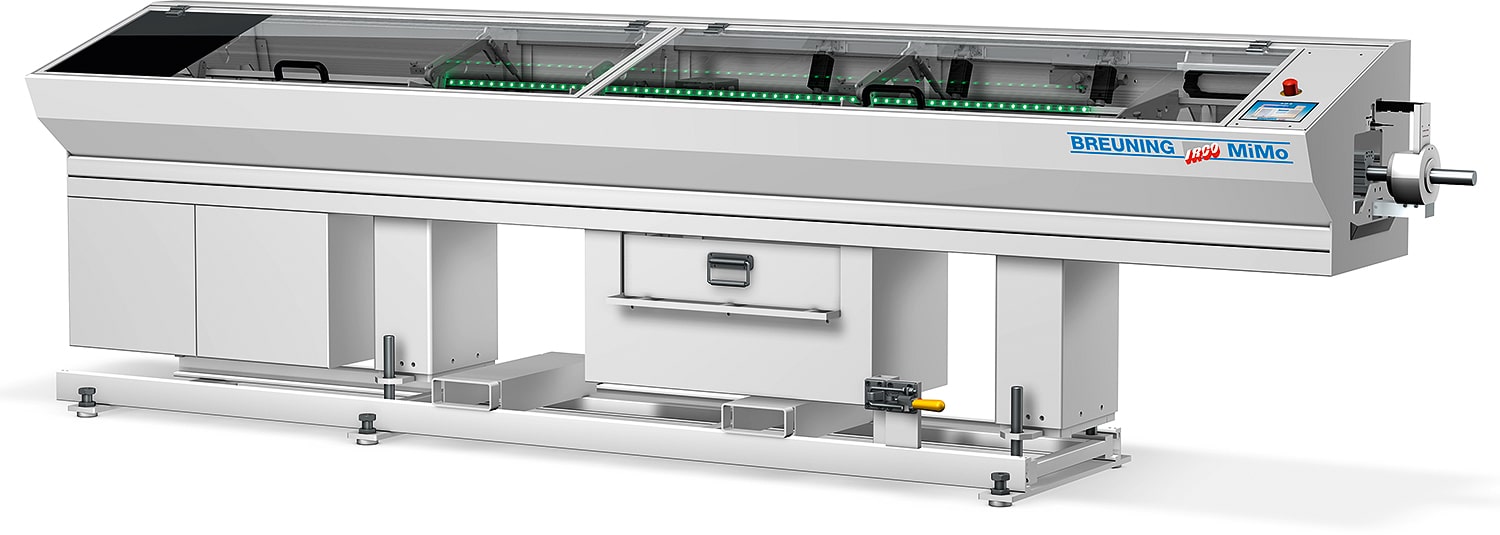

Two-channel loading magazine for long and short bars

MiMo II

Application area:

• Ideal for small and medium-sized batches

Properties:

• Suitable for all standard lathes and short lathes
• Attractive glass hood design
• High operating comfort thanks to a 18 cm (7″) widescreen touch display
• Telescope system integrated in the magazine, therefore extremely short design

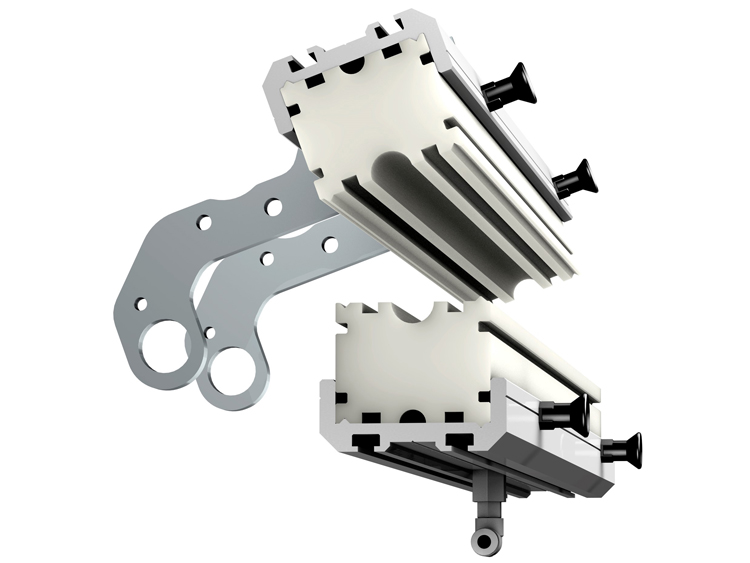

• Plastic turning channel
• High-performance oil flooding system
• Extremely simple conversion from long to short turning operation at the touch of a button
• Motorized adjustable material separation

​Working range:

• Bar length from 3000 mm to 4000 mm
• Up to 600 mm remnant length

Special features:

• Convenient loading during machining
• Optional axial displacement or radial displacement of the magazine

Long lathe:

• Round material, diameters from 3 mm to 36 mm
• With electronic spindle synchronisation
• Telescope system

Short lathe:

• Round material, diameters from 5 mm to 36 mm
• Stopper
• Combination bezel
