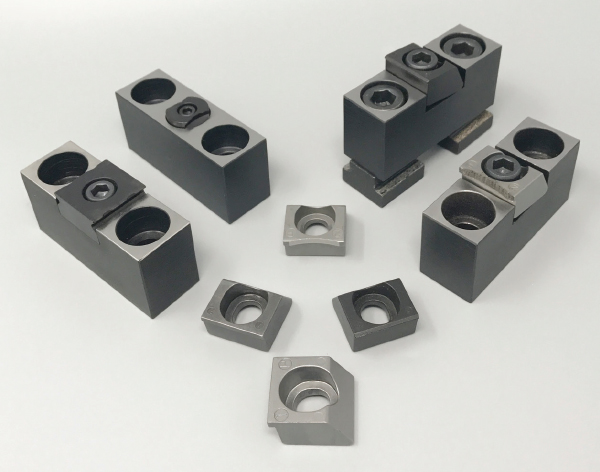

Modular Inline Clamping System

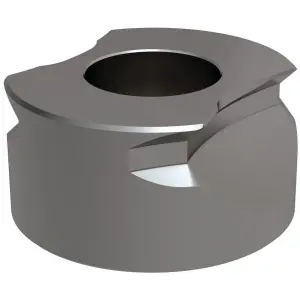

Using VersaGrip, TalonGrip and Pitbull
Key Features
- Positive down force on minimal clamping height
- Simple, sturdy, high quality design and components
- Use directly in t-slots or on fixture plates
- Can be used to mount regular or irregular shaped work pieces
Description
Clamps, grips and stops, designed to be fully adjustable while mounted on T-Slot tables and grid plates. This system is designed around our Pitbull® Clamp which remains the strongest, lowest profile fixture clamp in the industry. Low-profile stops and grippers incorporated into design for less tooling interference and savings on material cost. These modular clamps and stops are ground to the same height as our Large Modular Pitbull® Clamp providing even greater versatility.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Construction | Width (mm) | Height (mm) | Price | |
|---|---|---|---|---|---|---|
| 1 | 41125 | Inline Stop with Versagrip™ | 25.4 | 35 | £ Price on application | |
| 1 | 41335 | Inline Stop with Talongrip™ | 25.4 | 35 | £ Price on application | |
| 1 | 41225 | Inline Clamp with Pitbull KNIFE EDGE | 25.4 | 35 | £ Price on application | |
| 1 | 41226 | Inline Clamp with Pitbull BLUNT EDGE | 25.4 | 35 | £ Price on application | |
| 1 | 41227 | Inline Clamp with Pitbull MACHINABLE | 25.4 | 35 | £ Price on application |
