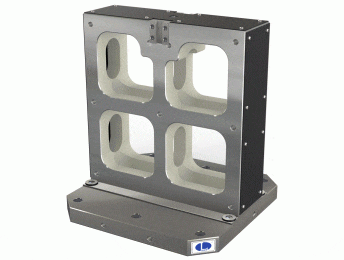

Modular Tooling Column
Tombstone with Quick Change Fixture Plates
Key Features
- Sturdy Cast Iron Design
- Standard Sub-Plate to suit with accurate locating hole
- Ground Flat and Parallel
- Threaded Holes for Side-Location
Description
Cast Iron, hollow tooling column with mounting holes to accept standard fixture plates. This allows for the quick change of fixtures without having to remove the column itself. Accurate location on column and plate for quick and easy set-up. Please are either plain or with threaded grid pattern.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Size of Pallet (mm) | Height (mm) | Thickness of Column (mm) | Machinable Plate | Grid Plate (M12) | Grid Plate (M16) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | BP13-400400-0450 | 400 | 400 | 130 | BP14-40400-040 | BP15-40400-0400-12 | BP15-40400-0400-16 |
|
£2,668.17 | ||
| 2 | BP13-500500-0555 | 500 | 500 | 150 | BP14-40500-0500 | BP15-40500-0500-12 | BP15-40500-0500-16 |
|
£3,400.84 | ||
| 3 | BP13-630630-0690 | 630 | 630 | 220 | BP14-40630-0630 | BP15-40630-0630-12 | BP15-40630-0630-16 |
|
£5,476.34 | ||
| 4 | BP13-800800-0860 | 800 | 800 | 250 | BP14-50800-0800 | BP15-50800-0800-12 | BP15-50800-0800-16 |
|
£7,638.17 |
