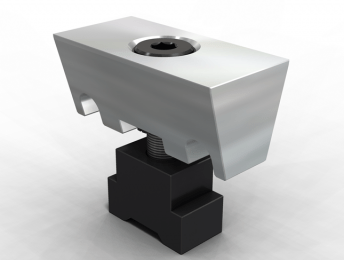

Moveable Wedge (SVF-A01)
For use on A Series
Key Features
- Maximise your machining envelope
- High precision and high clamping force
- Wide range of accessories for flexibility
- Manufactured from tool steel treated to HRC 55 and ground
Description
Movable clamping wedges for A and C series SVF vices.
Estimated delivery: On Request

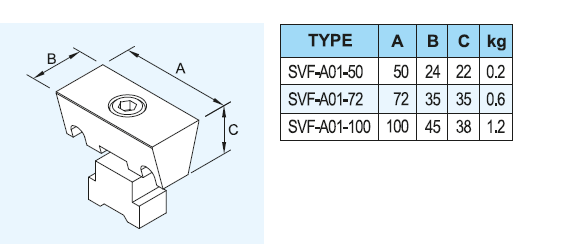

Dimensions
| # | Part No | Length (mm) | Width (mm) | Height (mm) | Series | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SVF-A01-50 | 24 | 50 | 22 | A & C series |
|
£46.67 | ||
| 2 | SVF-A01-72 | 35 | 72 | 35 | A & C series |
|
£50.17 | ||
| 3 | SVF-A01-100 | 45 | 100 | 38 | A & C series |
|
£127.17 |
