MR Series

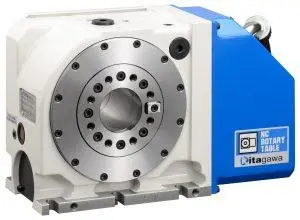

Standard 4th Axis Rotary Table
Key Features
- Compact Design
- Triple disc brake system for high clamping force
- High speed and accuracy
- Rotary joint as an option
Description
MR series Rotary Table with compact design and high accuracy. The innovative triple disc brake system gives substantially increased clamping force. Available with all motor types in right- or left-hand configurations to suit a variety of machine models. Price excludes motor and interface cables. RAV specification comes with an external controller that functions off an M-Code, used for machines that do not have 4th axis preparation. **Drawings and models subject to machined control**
Estimated delivery: On Request

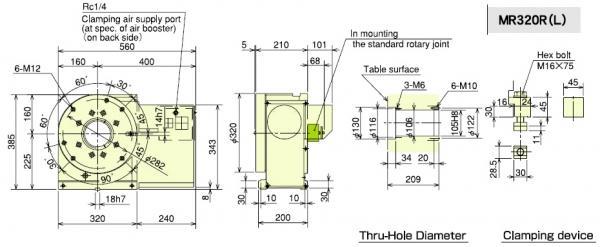

Dimensions
| # | Part No | Table Dia. (mm) | Centre Bore (mm) | Centre Height (mm) | Clamping Torque (Nm) | Allowable Inertia (kgm²) | Repeatability (sec) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | MR120 | 128 | 32 | 120 | 150 | 0.22 | 4 |
|
£9,364.00 | ||
| 2 | MR160 | 165 | 40 | 140 | 310 | 0.51 | 4 |
|
£9,813.00 | ||
| 3 | MR200 | 202 | 45 | 140 | 350 | 1 | 4 |
|
£10,337.00 | ||
| 4 | MR250 | 250 | 70 | 180 | 600 | 1.95 | 4 |
|
£10,984.00 | ||
| 5 | MR320 | 320 | 105 | 225 | 1200 | 4.49 | 4 |
|
£13,173.00 | ||
| 6 | MR120RAV00 | 128 | 32 | 120 | 150 | 0.22 | 4 |
|
£13,260.00 | ||
| 7 | MR160RAV00 | 165 | 40 | 140 | 310 | 0.51 | 4 |
|
£13,693.00 | ||
| 8 | MR200RAV00 | 202 | 45 | 140 | 350 | 1 | 4 |
|
£14,493.00 | ||
| 9 | MR250RAV00 | 250 | 70 | 180 | 600 | 1.95 | 4 |
|
£14,957.00 | ||
| 10 | MR320RAV00 | 320 | 105 | 225 | 1200 | 4.49 | 4 |
|
£17,151.00 |
