MultiZero Blank Pallet
MultiZero Blank Pallet
Key Features
- Size groups:• Rectangle A x B• Square A x A
- • Plastic protectors for thread holes• RFID identification and data chip installed optionally
- • Precise pallet sides used for centering• M12 thread holes for lifting
- • Retractable nipples on the underside (optional)• Positioning holes for clamping supports madeunderneath clamping bolts
Description
MultiZero® Blank Pallet • Delivered with blank top surface, or milled according to customer requests• Used for specific uses:- clamping of special vises and clamping fixtures- clamping customer specific workpieces, pallets can be designed and produced according customersproject requirements- possible to install specific zero-point pneumatic modules• Two types of pallet clamping:- Clamped with M12 bolts to the MultiZero® Plate- Clamped with retractable nipples onto the MultiZero® Pneumatic Plate• Pallet can be lifted by supports centered through slots from the underside at each clamping bolt• Pallet material: corrosion-resistant steel• RFID identification and data chip optionally installed on each pallet
Dimensions
| # | Part No | Dimensions (mm) | Clamping bolts | Price | ||
|---|---|---|---|---|---|---|
| 1 | 1B2-1013-0 | £1,167.00 | ||||
| 1 | 1B2-1023-0 | 149.5 x 319.5 x 40 (48) | 4 | £1,266.00 | ||
| 1 | 1B2-1033-0 | £1,357.00 | ||||
| 1 | 1B2-1043-0 | £1,509.00 | ||||
| 1 | 1B2-1053-0 | £1,661.00 | ||||
| 1 | 1B2-1063-0 | 199.5 x 599.5 x 40 (48) | 4 | £1,811.00 | ||
| 1 | 1B2-1073-0 | £1,848.00 | ||||

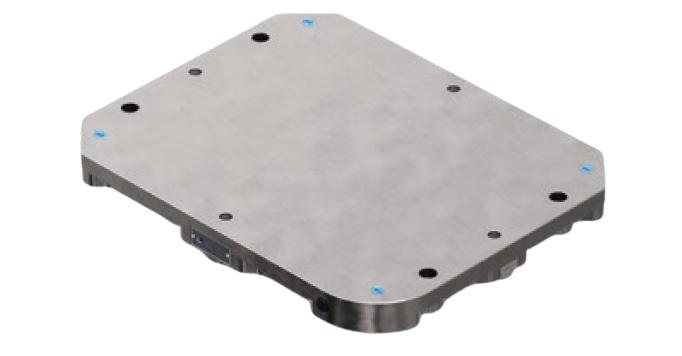

| 1 | 1B2-1083-0 | 399.5 x 499.5 x 40 (48) | 4 | £2,333.00 | ||
| 1 | 1B2-1093-0 | £2,718.00 | ||||
| 1 | 1B2-1183-0 | £2,416.00 | ||||
| 1 | 1B2-1193-0 | £3,173.00 | ||||
| 1 | 1B2-1203-0 | £4,535.00 | ||||
| 1 | 1B2-1103-0 | £1,073.00 | ||||
| 1 | 1B2-1113-0 | 199.5 x 199.5 x 40 (48) | 4 | £1,205.00 | ||
| 1 | 1B2-1123-0 | £1,339.00 | ||||
| 1 | 1B2-1133-0 | £1,584.00 | ||||
| 1 | 1B2-1143-0 | 399.5 x 399.5 x 40 (48) | 4 | £2,113.00 | ||
| 1 | 1B2-1153-0 | £2,795.00 | ||||
| 1 | 1B2-1163-0 | 629.5 x 629.5 x 40 (48) | 6 | £3,906.00 |
