MultiZero Clamp
MultiZero Clamp
Description

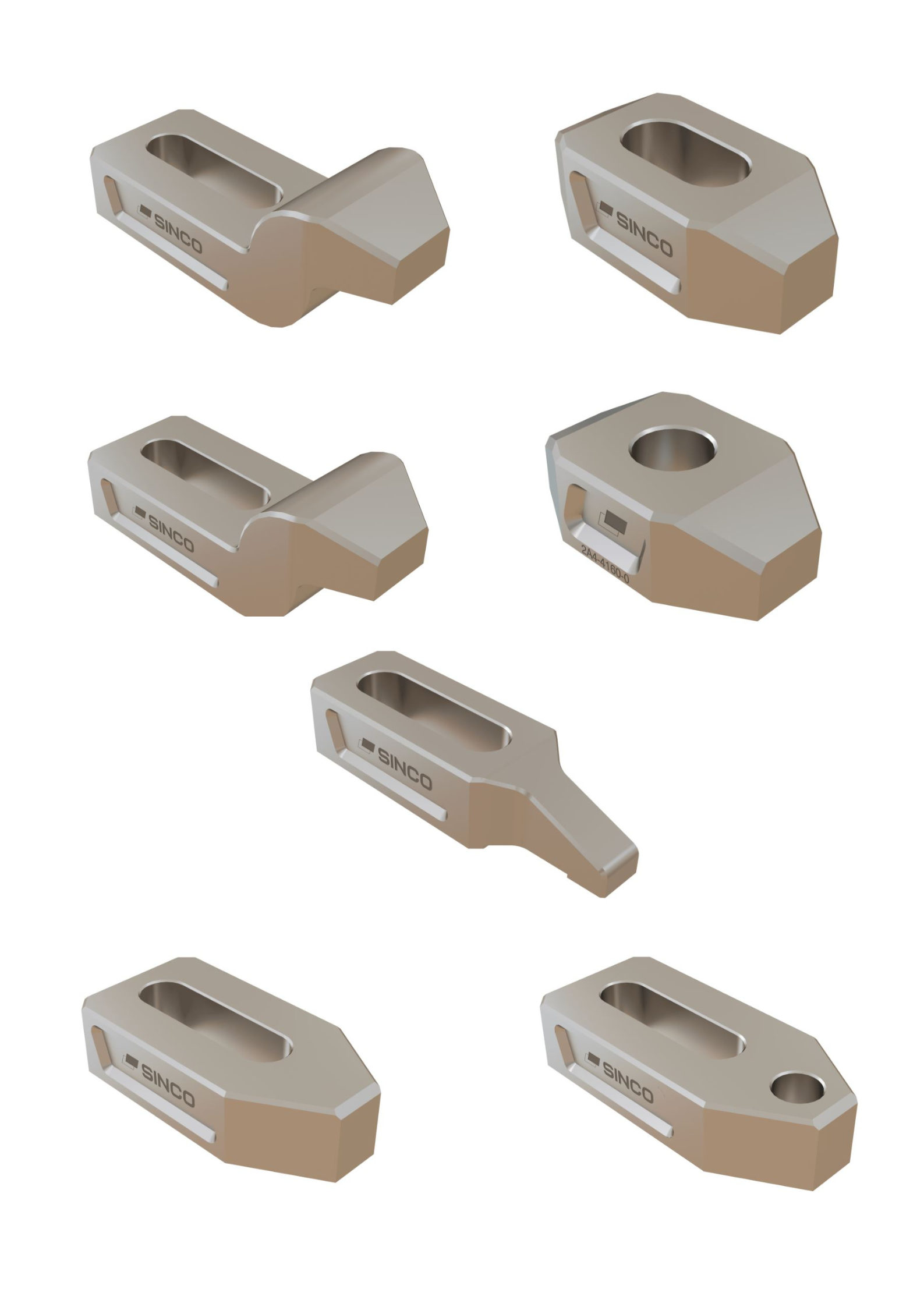

MultiZero® ClampFast. Accurate. Reliable.Used for clamping the workpiece on MultiZero® Clamping System Clamps designed to best suite clamping within MultiZero System and MultiZero Clamp PalletsAll items designed for clamping with bolt M12
Dimensions
| # | Part No | Dimensions (mm) | Clamping width at clamp tip (mm) | Bolt hole opening center to center (mm) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | 2A4-4110-0 | 40x80x20 | 14 | 36 | £52.00 | ||
| 1 | 2A4-4100-0 | 40x90x20 | 14 | 36 | £57.00 | ||
| 1 | 2A4-4120-0 | 30x95x20 | 13 | 36 | £63.00 | ||
| 1 | 2A4-4130-0 | 40x80x20 | 14 | 36 | £74.00 | ||
| 1 | 2A4-4140-0 | 40x80x20 | 14 | 36 | £59.00 | ||
| 1 | 2A4-4150-0 | 30x60x20 | 14 | 14 | £57.00 | ||
| 1 | 2A4-4160-0 | 30x49x16 | 14 | ɸ13 | £52.00 |
