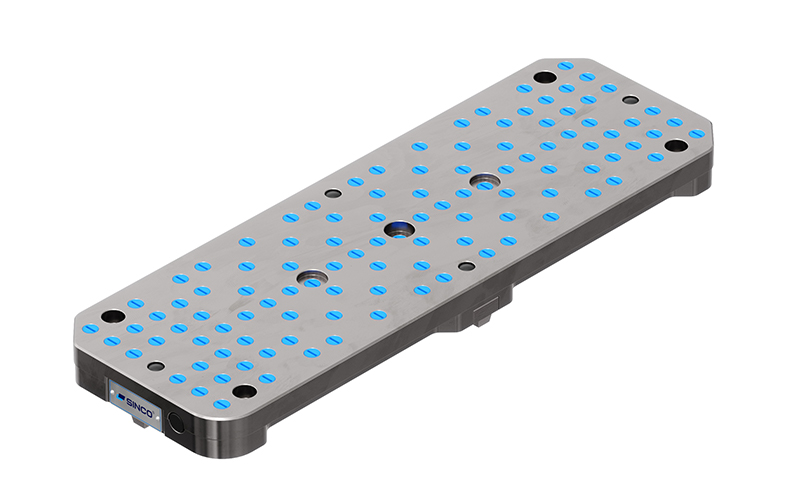

MultiZero Clamp Pallet
MultiZero Clamp Pallet
Key Features
- • Rectangle A x B• Square A x A
- • Array of M12 thread holes, pattern 25x25 mm
- • M10 bolt holes made from the underside
- • Plastic protectors for thread holes (supplied)
Description
MultiZero® Clamp Pallet• Used for clamping various fixtures or workpieces and vises directly• M12 thread holes in array of 25x25 mm• Standard dowel holes D12,00 F6 at each M12 thread, support hole and dowel system• Holes for M10 bolts made from the underside, at every M12 thread hole• Precisely machined holes D25,00 H7 for centering vises and fixtures, on the top of pallet• Two types of pallet clamping:• Clamped with M12 bolts to the MultiZero® Plate• Clamped with retractable nipple onto the MultiZero® Pneumatic Plate• Pallet can be lifted by supports centered through slots from the underside at each clamping bolt• Pallet material: corrosion-resistant steel• RFID identification and data chip optionally on each pallet
Dimensions
| # | Part No | Dimensions (mm) | Centering | Thread holes M12 | Clamping bolts | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 1B2-1011-0 | 99.5 x 349.5 x 40 (48) | - | 29 | 2x / 4x | £1,335.20 | ||
| 1 | 1B2-1021-0 | £1,496.65 | ||||||
| 1 | 1B2-1031-0 | 149.5 x 399.5 x 40 (48) | 3 | 48 | 4 | £1,645.14 | ||
| 1 | 1B2-1041-0 | 199.5 x 399.5 x 40 (48) | 3 | 72 | 4 | £1,893.79 | ||
| 1 | 1B2-1051-0 | 199.5 x 499.5 x 40 (48) | 3 | 87 | 4 | £2,142.44 | ||
| 1 | 1B2-1061-0 | 199.5 x 599.5 x 40 (48) | 3 | 109 | 4 | £2,388.74 | ||
| 1 | 1B2-1071-0 | 249.5 x 499.5 x 40 (48) | 3 | 88 | 4 | £2,447.65 | ||
| 1 | 1B2-1081-0 | 299.5 x 629.5 x 40 (48) | 3 | 130 | 6 | £3,238.40 | ||
| 1 | 1B2-1091-0 | 299.5 x 799.5 x 40 (48) | 5 | 166 | 6 | £3,868.89 | ||
| 1 | 1B2-1181-0 | 399.5 x 499.5 x 40 (48) | 7 | 160 | 4 | £3,377.45 | ||
| 1 | 1B2-1191-0 | 499.5 x 599.5 x 40 (48) | 7 | 244 | 4 | £4,614.83 | ||
| 1 | 1B2-1201-0 | 599.5 x 799.5 x 40 (48) | 15 | 338 | 6 | £6,837.40 | ||
| 1 | 1B2-1101-0 | 149.5 x 149.5 x 40 (48) | - | 16 | 1x / 4x | £1,186.73 | ||
| 1 | 1B2-1111-0 | 199.5 x 199.5 x 40 (48) | - | 41 | 4 | £1,402.39 | ||
| 1 | 1B2-1121-0 | 239.5 x 239.5 x 40 (48) | 1 | 69 | 4 | £1,619.23 | ||
| 1 | 1B2-1131-0 | 314.5 x 314.5 x 40 (48) | 3 | 74 | 4 | £2,017.54 | ||
| 1 | 1B2-1141-0 | 399.5 x 399.5 x 40 (48) | 7 | 121 | 4 | £2,875.44 | ||
| 1 | 1B2-1151-0 | 499.5 x 499.5 x 40 (48) | 7 | 197 | 4 | £3,980.83 | ||
| 1 | 1B2-1161-0 | 629.5 x 629.5 x 40 (48) | 9 | 262 | 6 | £5,785.04 |
