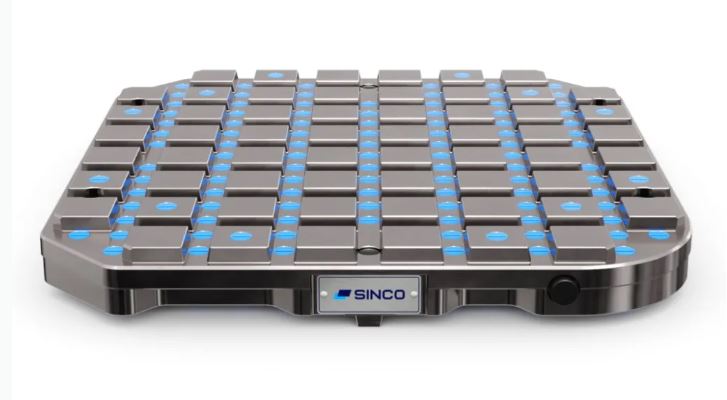

MultiZero Pallets
MultiZero Pallets
Key Features
- • Used for zero-point clamping of MultiZero clamping deVises, workpieces, fixtures, and Vises directly• MultiZero points in array of 50 x 50 mm
- • Thread holes M12 in array of 25 x 25 mm• Clamping repeatability <0.005 mm, at each MultiZero point
- • MultiZero point at every cross section of pallet slots• Two types of pallet clamping:- Clamped with M12 bolts to the MultiZero Plate- Clamped with addition of retractable nipples onto the MultiZero Pneumatic Plate
- • MultiZero point at every cross section of pallet slots• Two types of pallet clamping:- Clamped with M12 bolts to the MultiZero Plate- Clamped with addition of retractable nipples onto the MultiZero Pneumatic Plate
Description
The MultiZero Clamping System not only boasts two product groups of MultiZero Plates, but also includes five pallet types with a great size selection, the results of which are seen in achievingthe maximum processing productivity.The Pallet System supports clamping on to the MultiZero Plates manually or automatically with pneumatic modules. It is designed to be very simple and easy to use. Easy setup and repeatability in clamping and set-up of the machine makes it ideal for low-series, single-part production as well as serial production. The system is simultaneously extremely flexible and suitable for clamping complex workpieces.
Dimensions
| # | Part No | Dimensions (mm) | Zero points | Thread holes M12 | Clamping bolts | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 1B2-1010-0 | 99.5 x 349.5 x 40 (48) | 7 | 16 | 2x / 4x | £1,535.48 | ||
| 1 | 1B2-1020-0 | 149.5 x 319.5 x 40 (48) | 15 | 33 | 4 | £1,721.14 | ||
| 1 | 1B2-1030-0 | 149.5 x 399.5 x 40 (48) | 21 | 50 | 4 | £1,891.90 | ||
| 1 | 1B2-1040-0 | 199.5 x 399.5 x 40 (48) | 21 | 61 | 4 | £2,177.79 | ||
| 1 | 1B2-1050-0 | 199.5 x 499.5 x 40 (48) | 27 | 87 | 4 | £2,463.80 | ||
| 1 | 1B2-1060-0 | 199.5 x 599.5 x 40 (48) | 33 | 101 | 4 | £2,746.99 | ||
| 1 | 1B2-1070-0 | 249.5 x 499.5 x 40 (48) | 41 | 115 | 4 | £2,814.88 | ||
| 1 | 1B2-1080-0 | 299.5 x 629.5 x 40 (48) | 51 | 174 | 6 | £3,724.15 | ||
| 1 | 1B2-1090-0 | 299.5 x 799.5 x 40 (48) | 75 | 233 | 6 | £4,449.28 | ||
| 1 | 1B2-1180-0 | 399.5 x 499.5 x 40 (48) | 59 | 195 | 4 | £3,884.09 | ||
| 1 | 1B2-1190-0 | 499.5 x 599.5 x 40 (48) | 95 | 305 | 4 | £5,307.05 | ||
| 1 | 1B2-1200-0 | 599.5 x 799.5 x 40 (48) | 161 | 504 | 6 | £7,862.99 | ||
| 1 | 1B2-1100-0 | 149.5 x 149.5 x 40 (48) | 9 | 12 | 1x / 4x | £1,364.65 | ||
| 1 | 1B2-1110-0 | 199.5 x 199.5 x 40 (48) | 9 | 24 | 1x / 4x | £1,612.74 | ||
| 1 | 1B2-1120-0 | 239.5 x 239.5 x 40 (48) | 21 | 53 | 4 | £1,862.09 | ||
| 1 | 1B2-1130-0 | 314.5 x 314.5 x 40 (48) | 25 | 77 | 4 | £2,320.15 | ||
| 1 | 1B2-1140-0 | 399.5 x 399.5 x 40 (48) | 45 | 150 | 4 | £3,306.75 | ||
| 1 | 1B2-1150-0 | 499.5 x 499.5 x 40 (48) | 77 | 249 | 4 | £4,577.95 | ||
| 1 | 1B2-1160-0 | 629.5 x 629.5 x 40 (48) | 117 | 375 | 6 | £6,652.79 |
