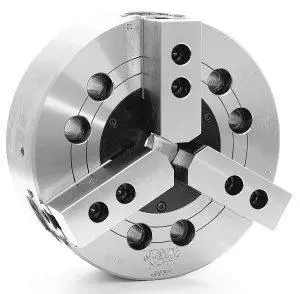

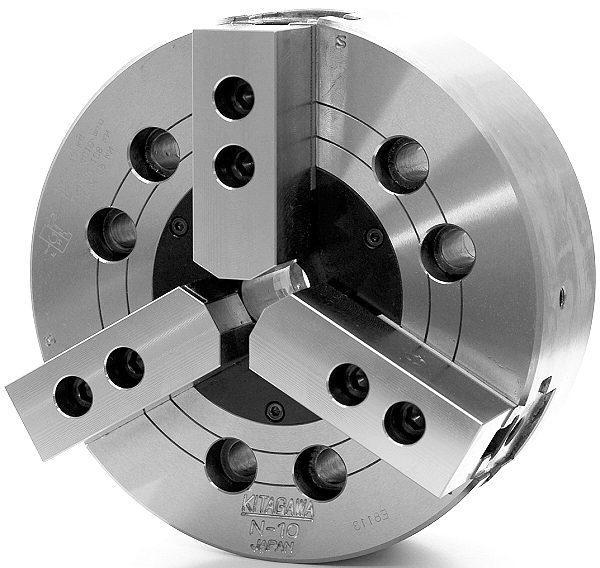

N Series (with Adaptor)

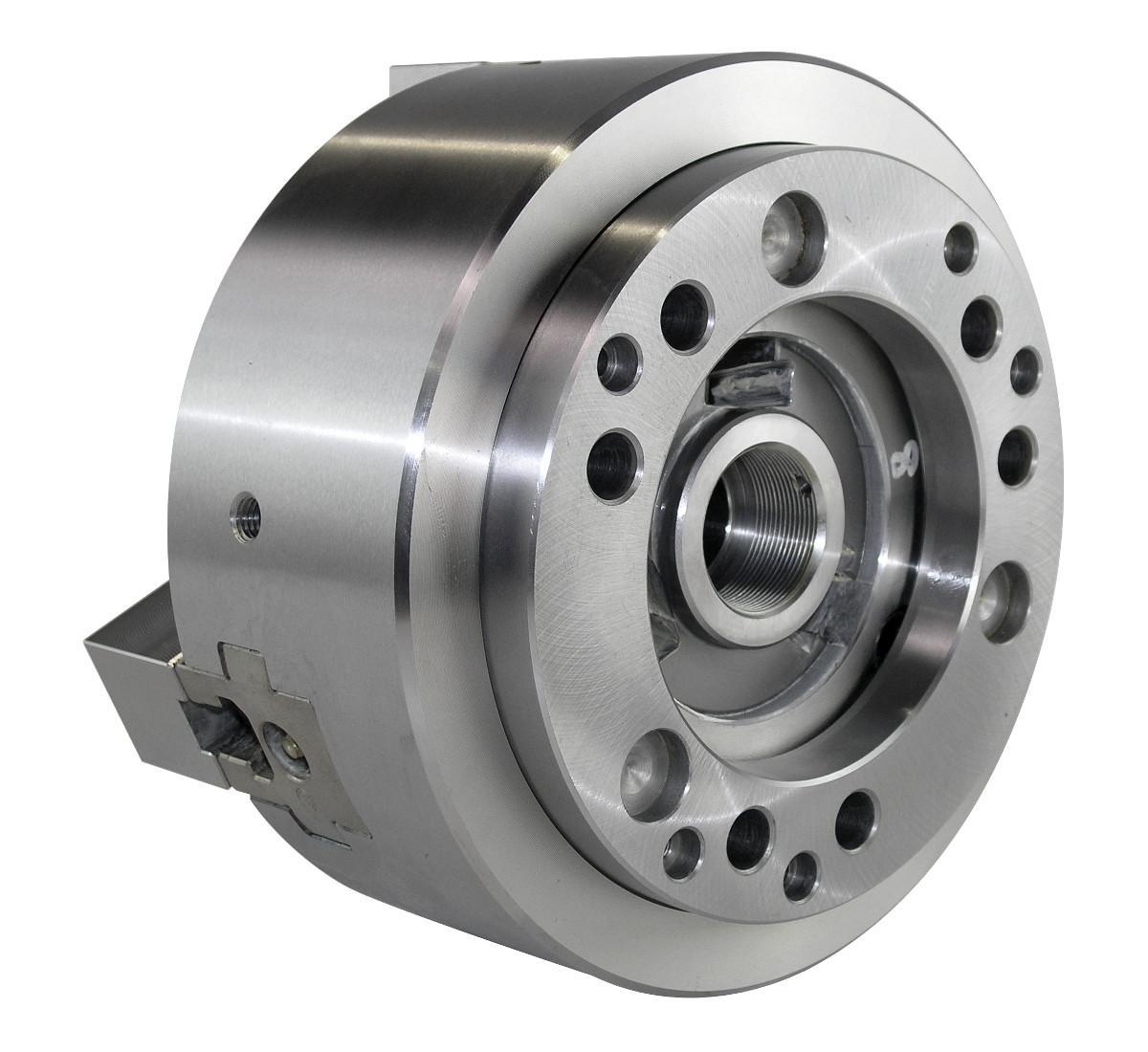

3 Jaw Closed Centre Power Chuck with Adaptor Plate
Key Features
- Compatible with large, readily available, range of jaws
- Standard Accessories Available
Description
Kitagawa chucks are manufactured from high grade alloy steel. Highly durable standard closed centre chuck. N series chucks are supplied with a blank drawnut as standard with a set of T-nuts.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Spindle Nose | Jaw Stroke Diameter (mm) | Max Grip Force (kN) | Max. Speed (rpm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N-06A05 | A2-5 | 8.5 | 52.5 | 5270 |
|
£7,954.00 | ||
| 2 | N-08A6 | A2-6 | 8.8 | 75 | 4760 |
|
£1,264.00 | ||
| 3 | N-10A6 | A2-6 | 8.8 | 108 | 4010 | £1,646.00 | |||
| 4 | N-10A8 | A2-8 | 8.8 | 108 | 4010 | £1,646.00 | |||
| 5 | N-12A6 | A2-6 | 10.5 | 156 | 3380 | £2,421.00 | |||
| 6 | N-12A8 | A2-8 | 10.5 | 156 | 3380 | £2,421.00 | |||
| 7 | N-15A8 | A2-8 | 16 | 249 | 3040 | £4,370.00 | |||
| 8 | N-15A11 | A2-11 | 16 | 249 | 3040 | £4,370.00 | |||
| 9 | N-18A8 | A2-8 | 16 | 249 | 2710 | £7,954.00 | |||
| 10 | N-18A11 | A2-11 | 16 | 249 | 2710 | £7,954.00 | |||
| 11 | N21A11 | A2-11 | 16 | 273 | 1940 | £10,080.00 | |||
| 12 | N21A15 | A2-15 | 16 | 273 | 1940 | £10,080.00 | |||
| 13 | N24A11 | A2-11 | 16 | 273 | 1760 | £13,204.00 | |||
| 14 | N24A15 | A2-15 | 16 | 273 | 1760 | £13,204.00 |
