Neodymax

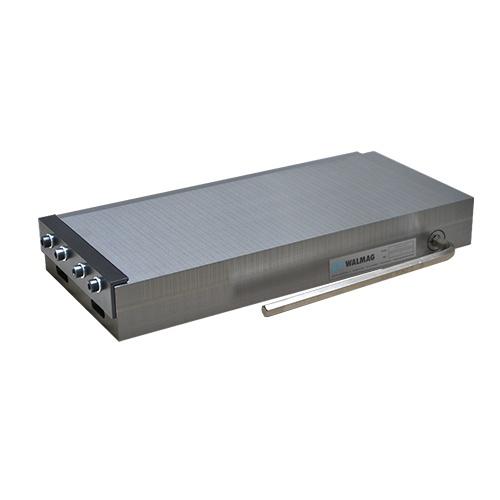

Permanent Magnetic Chuck for Surface Grinding

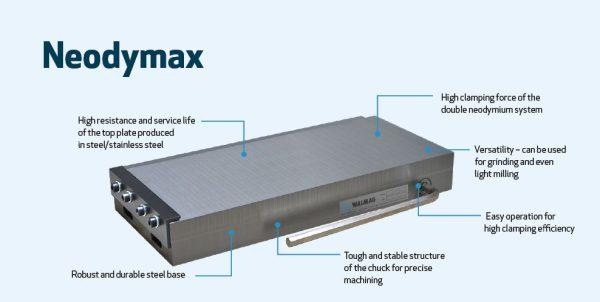

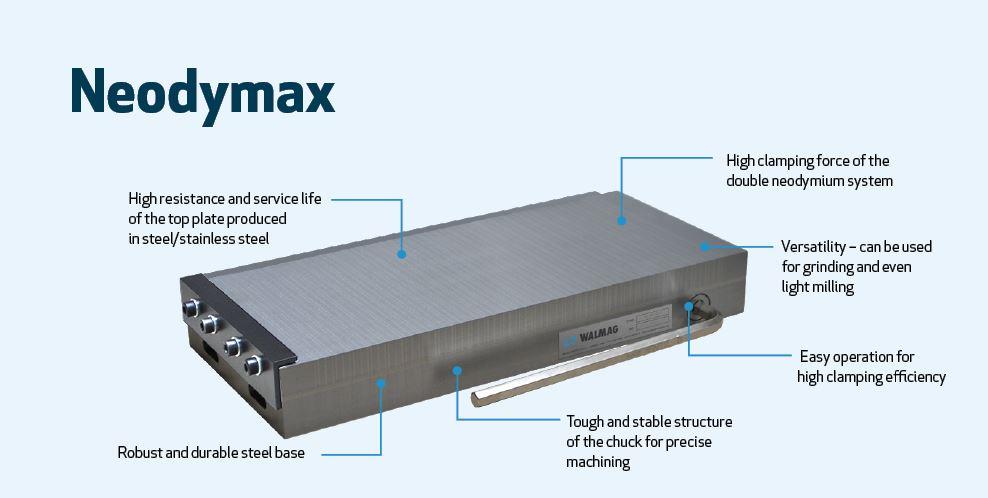

Key Features
- High holding force of the double magnetic system with neodymium magnets
- Versatility - the possibility of use for grinding and light milling
- Tough and stable structure of the chuck for precise machining
- High durability and long life span of the top plate made of steel/stainless steel
Description
Neodymax ranks among the strongest permanent magnetic chucks in our range. Heavy holding force up to 120 N/cm2 helps clamp the parts during machining efficiently. This is due to the double neodymium magnetic system capable of exerting a high holding force and retaining a low chuck weight.The top plate is made of very durable material and provided with transverse combined poles with a pitch of 5/1/5/1/2/1 mm (steel/stainless steel). Consequently, Neodymax is suitable for workpiece clamping during precise surface grinding when it is no problem to clamp small and thin parts as well as much bigger components. The chuck can also be used for light milling operations. Thanks to its waterproof design, the chuck can be immersed in dielectric liquid during EDM machining.Application: Milling, grinding, EDMTechnology: PermanentHolding force: 120 N/cm2Min. workpiece size: 10 x 10 x 5 mmPoles: TransverseRegrinding limit: 6 mmPole pitch: 15 mm, further refined 5/1/5/1/2/1 steel/stainless steel
Estimated delivery: On Request

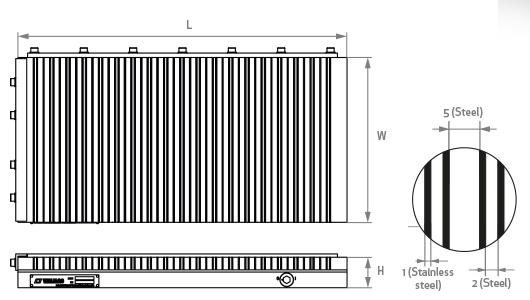

Dimensions
| # | Part No | Width (mm) | Length (mm) | Height (mm) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | NEOD150300 | 150 | 300 | 54 | £1,458.00 | ||
| 1 | NEOD150450 | 150 | 450 | 54 | £1,715.00 | ||
| 1 | NEOD200450 | 200 | 450 | 54 | £2,054.00 | ||
| 1 | NEOD250380 | 250 | 380 | 56 | £2,350.00 | ||
| 1 | NEOD300600 | 300 | 600 | 56 | £2,971.00 |
