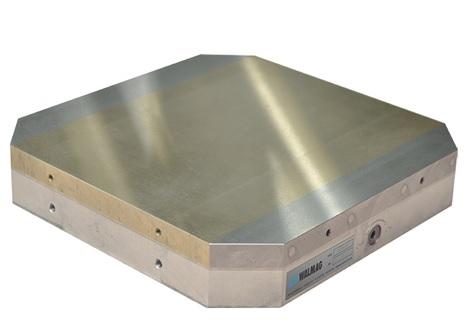

Neomicro Pallet
Palletised Grinding Magnet

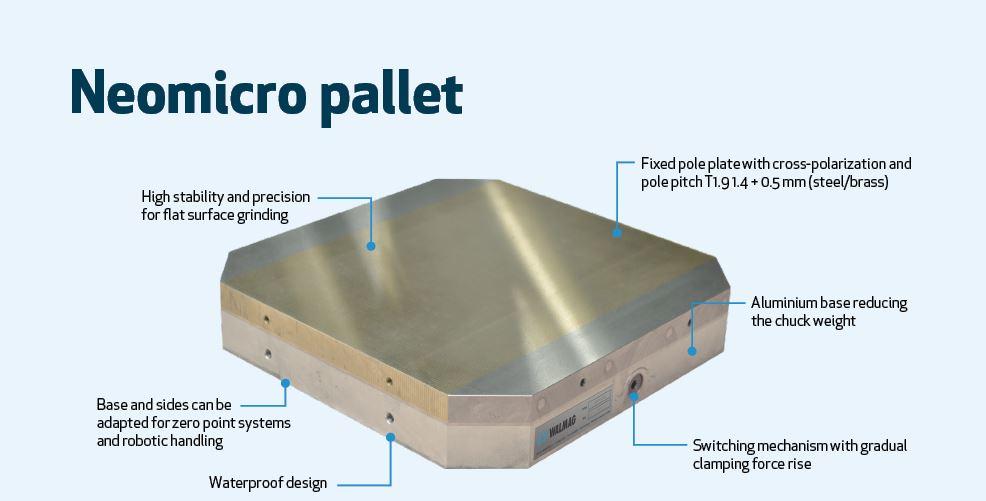

Key Features
- Aluminium base reducing the chuck weight
- Ability to vary the holding force 0 - 100 N/cm²
- Waterproof design
- High stability and accuracy during surface grinding Ability to clamp even the thinnest parts
Description
The Neomicro permanent pallet chuck can be used for machining in automated production plants and machining centres. Suitable primarily for grinding and electrical discharge machining of a wide range of parts, from large to very small and thin.
Estimated delivery: On Request

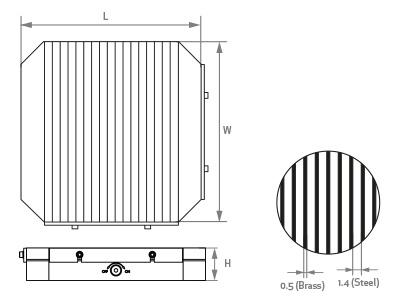

Dimensions
| # | Part No | Dimension (mm) | Height (mm) | Holding Force (N/cm²) | Price | |
|---|---|---|---|---|---|---|
| 1 | NEOC240240P | 240x240 | 63.5 | 100 | ||
| 1 | NEOC280280P | 280x280 | 63.5 | 100 | ||
| 1 | NEOC320320P | 320x320 | 63.5 | 100 |
