Neostar
Round Permanent Magnetic Chuck for Turning

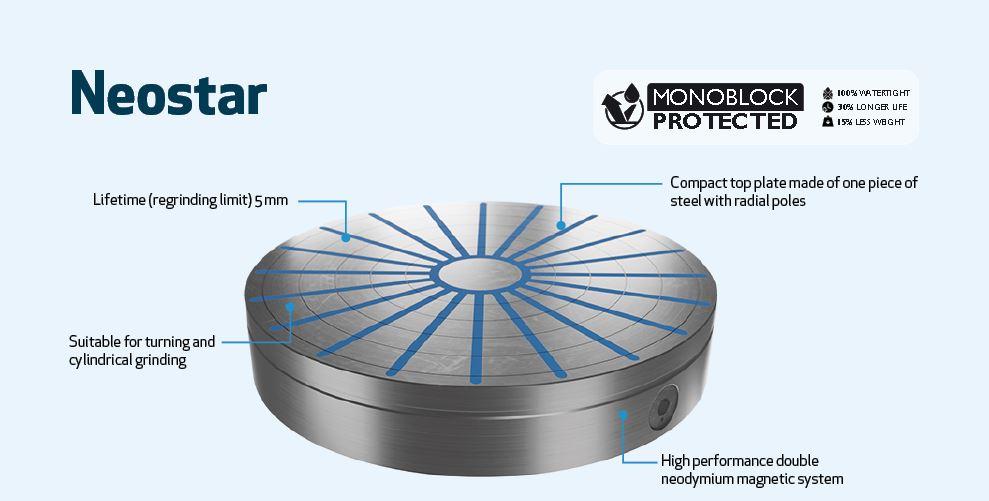

Key Features
- Very Powerful Double Magnetic System with Neodynium Magnets
- Suitable to Turning and Circular Grinding
- Compact Top Plate made of One Piece of Steel with Radial Poles
- Minimum Workpiece Diameter 35mm
Description

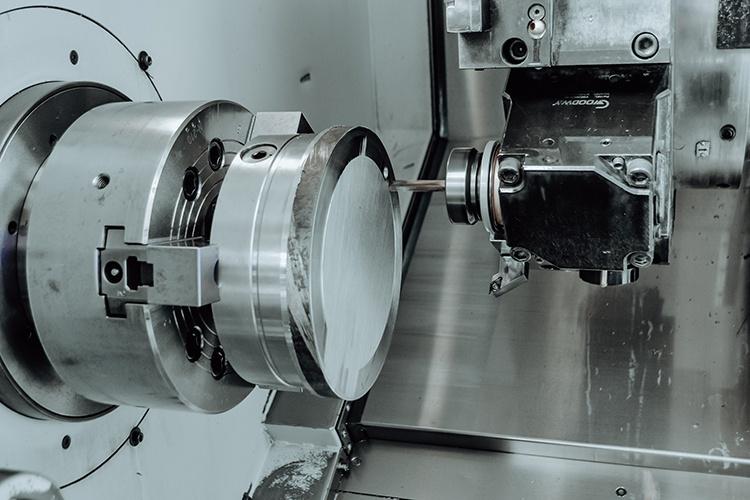

The Neostar permanent chuck is primarily designed for turning and grinding round and ring shaped workpieces. The advantage is the possibility to machine of the front, inner and outer diameter of the workpiece in one operation. Compact top plate made of one piece of steel with radial poles Suitable for turning and circular grinding Very powerful double magnetic system with neodymium magnets Steel base
Estimated delivery: 3-5 Working Days (subject to availability)

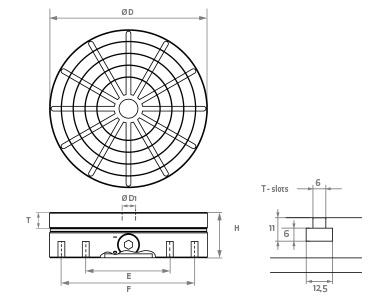

Dimensions
| # | Part No | Diameter (mm) | Height (mm) | Number of Poles | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | NEOS130 | 130 | 57 | 10 | £966.00 | ||
| 1 | NEOS150 | 150 | 57 | 10 | £969.00 | ||
| 1 | NEOS200 | 200 | 57 | 12 | £1,330.00 | ||
| 1 | NEOS250 | 250 | 70 | 16 | £1,629.00 | ||
| 1 | NEOS300 | 300 | 73 | 16 | £2,107.00 | ||
| 1 | NEOS350 | 350 | 73 | 20 | £3,032.00 | ||
| 1 | NEOS400 | 400 | 74 | 20 | £4,116.00 | ||
| 1 | NEOS500 | 500 | 78 | 24 | £5,235.00 | ||
| 1 | NEOS600 | 600 | 78 | 30 | £7,419.00 | ||
| 1 | NEOS700 | 700 | 78 | 30 | £9,288.00 | ||
| 1 | NEOS800 | 800 | 110 | 30 | £12,954.00 |
