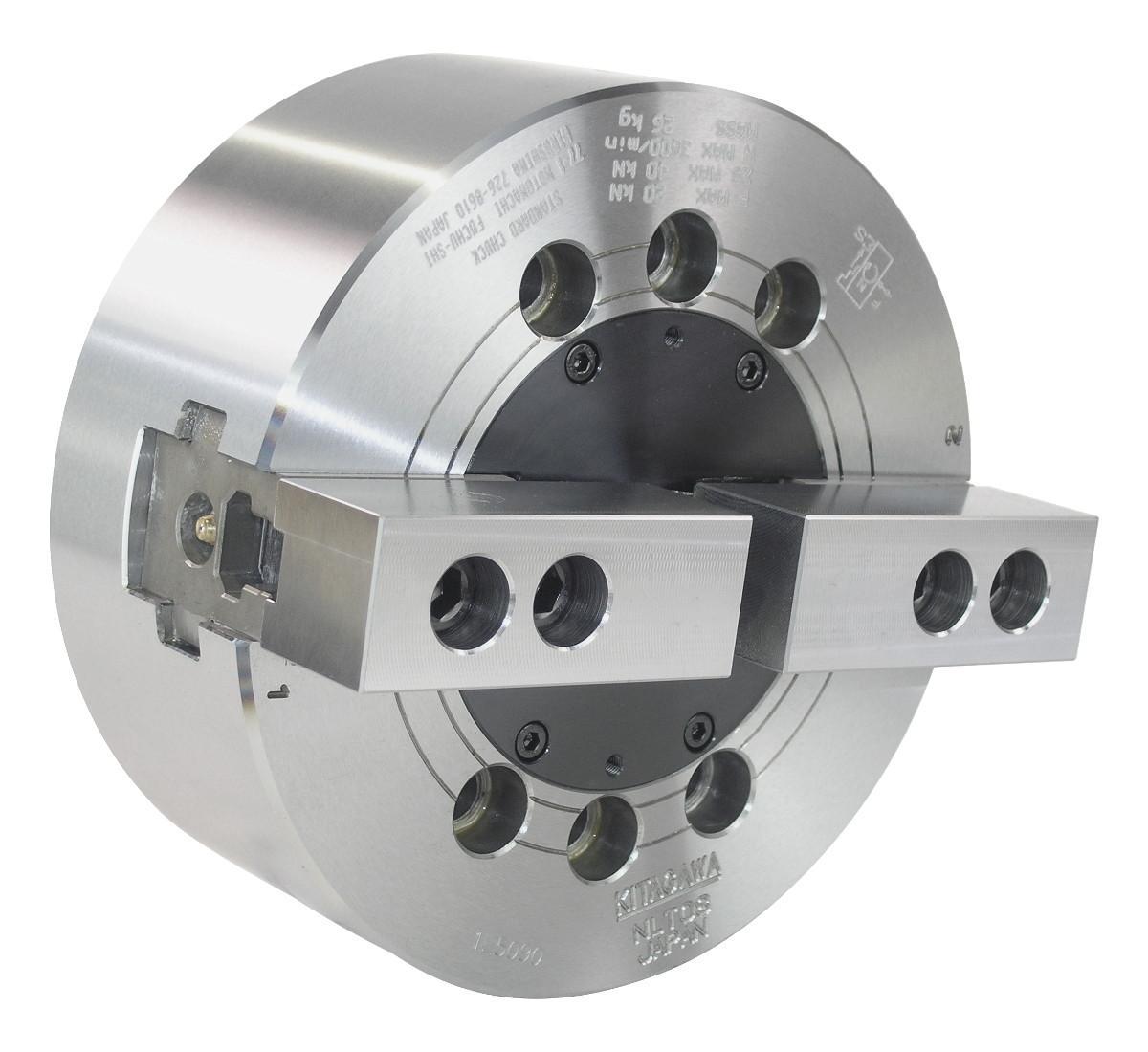

NT and NLT Series

Closed Centre 2 Jaw Power Chucks

Key Features

  • Usefull for gripping irregular shaped components
  • Lever style mechanism allows for increased jaw stroke
  • Greater clearance for flanged workpeices
  • Compatible with large, readily available, range of jaws

Description

Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa NLT series combines the advantages of level style and two jaw chucks, giving a perfect solution to abnormal flange work pieces. NLT series chucks are supplied with blank drawnut and a set of t-nuts as standard.

Estimated delivery: 2-3 Weeks (subject to availability)

Dimensions

# Part No Jaw Stroke Diameter (mm) Max Grip Force (kN) Max. Speed (rpm) Drawings Price
1 NT04 6.4 15.2 6000 £778.00
2 NT05 6.4 16.8 5500 £849.00
3 NLT06 13 26 4300 £956.00
4 NLT08 16.2 40 3600 £1,023.00
5 NLT10 18.1 54 3100 £1,317.00
6 NLT12 19.4 74 2500 £1,989.00
7 NT15 £ Price on application n/a
