NTS206
Description

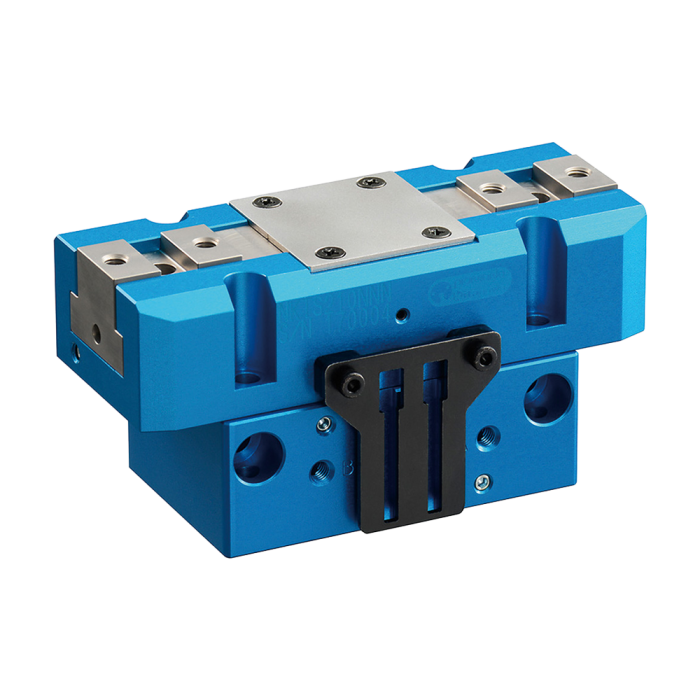

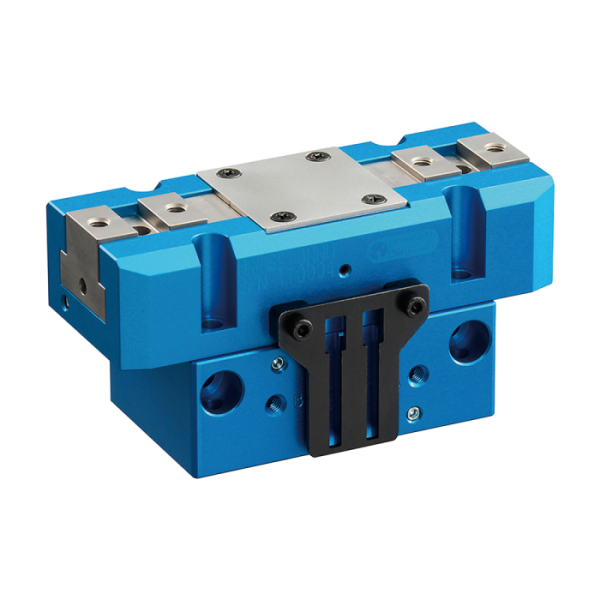

NTS206 Two Jaw Pneumatic Parallel gripper
High quality & durable standard model
Swarf protection and improved maintenance High gripping force for stable gripping of heavy workpieces Lightweight and compact body not limiting the load capacity of robot New mounting style for smaller protrusion compared with conventional models Improved gripping accuracy due to extremely rigid body
Close Force(N): 250
Open Force(N): 280
* Air pressure set at 0.6 MPa.
Measurement Distance L(mm): 10
Jaw Stroke: 12mm(dia.), 6mm(per finger)
Repeatability(mm): ±0.01
Mass (kg): 0.29
Air Consumption per reciprocating (cm3): 8.4
Air pressure (MPa): 0.2 ~ 0.8
Operating Temperature (): 5 ~ 60
£734.00
