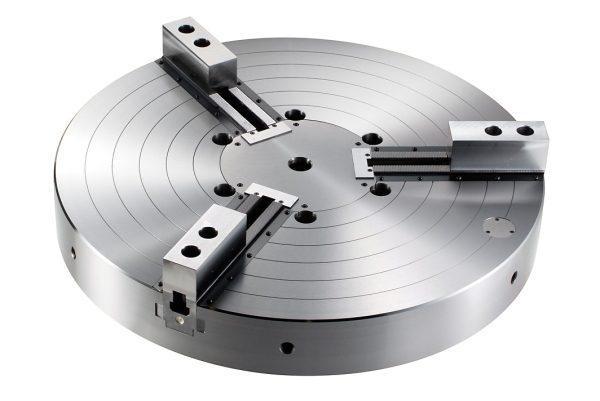

NV Series With Adaptor
Large Power Chuck for Vertical Lathes with Adaptor Plate
Key Features
- Protection against swarf and coolant
- Compatible with standard hard and soft jaws
- Designed with vertical lathes in mind
- Highly durable
Description
The NV Series With Adaptor are highly durable standard closed centre chucks that have been designed for vertical lathes. Being fully sealed about the base jaws to limit ingress of swarf. NV series chucks are supplied with a blank drawnut as standard with a set of T-nuts. Kitagawa chucks are manufactured from high grade alloy steel.
Estimated delivery: 2-3 Weeks (subject to availability)
Dimensions
| # | Part No | Spindle Nose | Jaw Stroke Diameter (mm) | Max Grip Force (kN) | Max. Speed (rpm) | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | NV15A11 | A2-11 | 16 | 247 | 2900 | £5,967.00 | ||
| 1 | NV18A11 | A2-11 | 16 | 247 | 2600 | £8,754.00 | ||
| 1 | NV21A15 | A2-15 | 16 | 272 | 1800 | £12,493.00 | ||
| 1 | NV24A15 | A2-15 | 16 | 272 | 1700 | £14,527.00 | ||
| 1 | NV28A15 | A2-15 | 16 | 272 | 1200 | £14,965.00 | ||
| 1 | NV32A15 | A2-15 | 16 | 272 | 1100 | £18,419.00 | ||
| 1 | NV36A15 | A2-15 | 16 | 272 | 1000 | £23,022.00 | ||
| 1 | NV40A15 | A2-15 | 16 | 272 | 800 | £27,621.00 |
