Pitbulls Clamps
Low Profile Pull Down Clamping
Key Features
- Positive down force on minimal clamping height
- Simple, sturdy, high quality design and components
- Easy to design and build fixtures
- Easy to achieve high workpiece density
Description

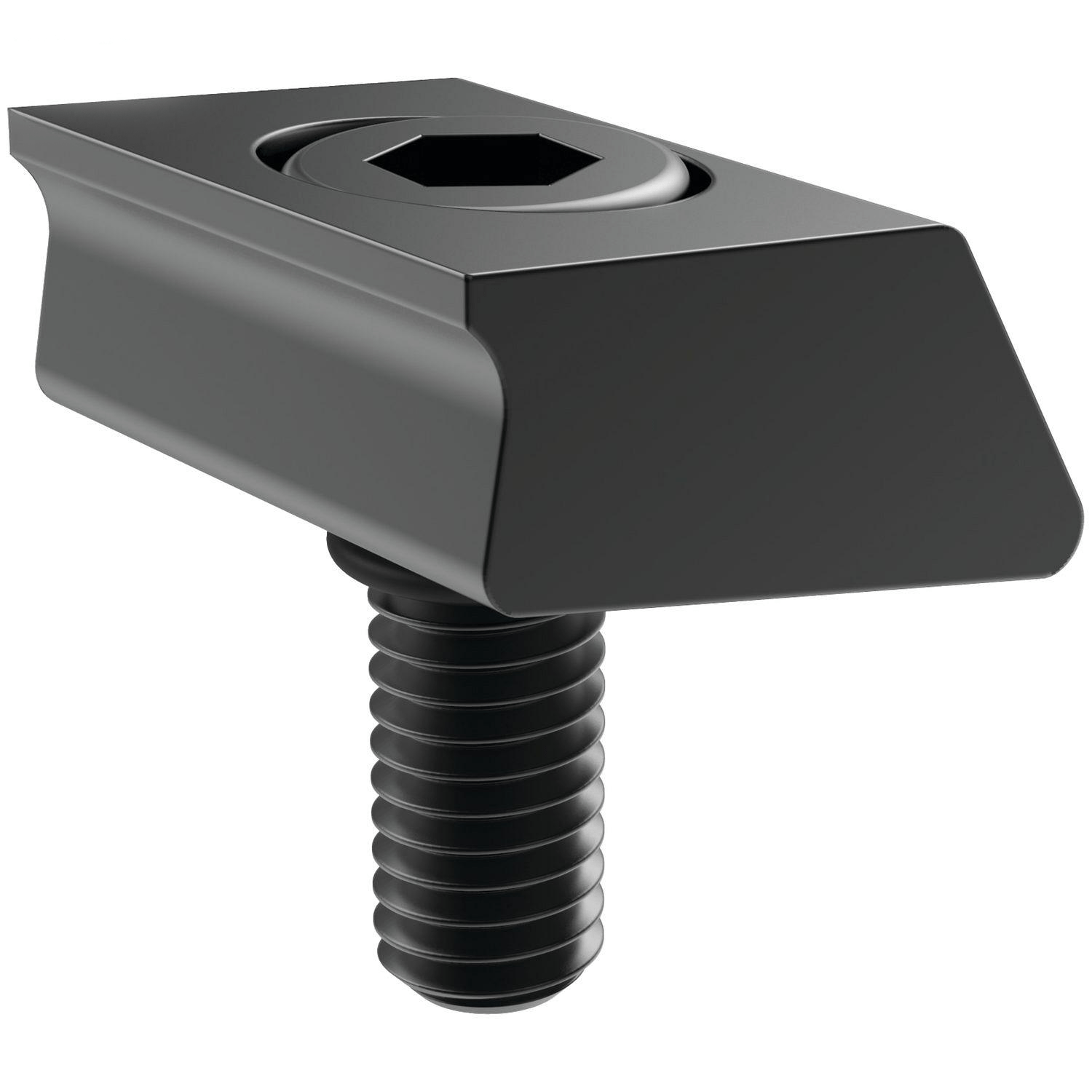

The revolutionary Pitbull® Clamp remains the lowest profile, highest holding force clamp in the industry today. Using a standard cap screw and an oil resistant O-ring, the Pitbull® Clamp is available in 5 sizes and several styles, a tool steel knife edge for aggressive stock removal, a tool steel blunt edge for general purpose and a brass version to help prevent marring the workpiece as well as a machinable version. 56000, 56010, 56015, 56020, 56030, 56040 - Supplied in packs of 8 56050, 56060, 56065 - Supplied in packs of 6 56070, 56075 - Supplied in packs of 4 56080, 56085 - Supplied in packs of 2
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Construction | Width (mm/inch) | Travel (mm/inch) | Screw | Clamp Force (N/lbs) | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 56000 | Metric | Tool Steel | Knife Edge | 9.52 | .190 | M2.5 | 2800 | £111.92 | ||
| 1 | 56010 | Metric | Tool Steel | Blunt Edge | 9.52 | .190 | M2.5 | 2800 | £111.92 | ||
| 1 | 56015 | Metric | Brass | Blunt Edge | 9.52 | .190 | M2.5 | 875 | £111.92 | ||
| 1 | 56020 | Metric | Tool Steel | Knife Edge | 12.70 | .406 | M4 | 6600 | £121.04 | ||
| 1 | 56030 | Metric | Tool Steel | Blunt Edge | 12.70 | .406 | M4 | 6600 | £121.04 | ||
| 1 | 56040 | Metric | Brass | Blunt Edge | 12.70 | .406 | M4 | 1750 | £121.04 | ||
| 1 | 56050 | Metric | Tool Steel | Knife Edge | 19.05 | .610 | M6 | 16000 | £117.47 | ||
| 1 | 56060 | Metric | Tool Steel | Blunt Edge | 19.05 | .610 | M6 | 16000 | £117.47 | ||
| 1 | 56065 | Metric | Brass | Blunt Edge | 19.05 | .610 | M6 | 4200 | £117.47 | ||
| 1 | 56070 | Metric | Tool Steel | Knife Edge | 25.4 | 1.270 | M10 | 26000 | £126.88 | ||
| 1 | 56075 | Metric | Tool Steel | Blunt Edge | 25.4 | 1.270 | M10 | 26000 | £126.88 | ||
| 1 | 56080 | Metric | Tool Steel | Knife Edge | 38.1 | 1.900 | M12 | 50000 | £111.06 | ||
| 1 | 56085 | Metric | Tool Steel | Blunt Edge | 38.1 | 1.900 | M12 | 50000 | £98.72 | ||
| 1 | 26000 | Imperial | Tool Steel | Knife Edge | .375 | .0075 | 4-40 | 650 | £ Price on application | n/a | |
| 1 | 26010 | Imperial | Tool Steel | Blunt Edge | .375 | .0075 | 4-40 | 650 | £ Price on application | n/a | |
| 1 | 26015 | Imperial | Brass | Blunt Edge | .375 | .0075 | 4-40 | 200 | £ Price on application | n/a | |
| 1 | 26020 | Imperial | Tool Steel | Knife Edge | .500 | .016 | 8-32 | 1500 | n/a | ||
| 1 | 26030 | Imperial | Tool Steel | Blunt Edge | .500 | .016 | 8-32 | 1500 | £ Price on application | n/a | |
| 1 | 26040 | Imperial | Brass | Blunt Edge | .500 | .016 | 8-32 | 400 | £ Price on application | n/a | |
| 1 | 26050 | Imperial | Tool Steel | Knife Edge | .750 | .024 | 1/4-20 | 3600 | n/a | ||
| 1 | 26060 | Imperial | Tool Steel | Blunt Edge | .750 | .024 | 1/4-20 | 3600 | £ Price on application | n/a | |
| 1 | 26065 | Imperial | Brass | Blunt Edge | .750 | .024 | 1/4-20 | 950 | £ Price on application | n/a | |
| 1 | 26070 | Imperial | Tool Steel | Knife Edge | 1.00 | .050 | 3/8-16 | 6000 | £ Price on application | n/a | |
| 1 | 26075 | Imperial | Tool Steel | Blunt Edge | 1.00 | .050 | 3/8-16 | 6000 | £ Price on application | n/a | |
| 1 | 26080 | Imperial | Tool Steel | Knife Edge | 1.50 | .075 | 1/2-13 | 12000 | £ Price on application | n/a | |
| 1 | 26085 | Imperial | Tool Steel | Blunt Edge | 1.50 | .075 | 1/2-13 | 12000 | £ Price on application | n/a |
