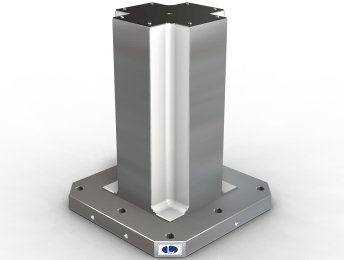

Plain Cross Tooling Column
Machinable Cast Iron X Shaped Tombstone
Key Features
- Machinable to accept required hole pattern
- Ground Flat and Parallel
- Threaded Holes for Side-Location
- X-Shape allows for more side Clearance for Machining
Description
Cast iron plain cross profile Tooling Column with mounting holes. Plain to allow for the machining of hole patterns and features required for specific fixtures. Ground flat parallel and perpendicular for accuracy. Holes for side location to allow precise loading and setting up of the tombstone.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Height (A)(mm) | Size of Pallet (B) (mm) | Width (mm) ( C ) | Thickness (mm) (H) | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | BP29-400400-0500 | 500 | 400 | 250 | 125 | £2,299.50 | ||
| 1 | BP29-400400-0650 | 650 | 400 | 250 | 125 | £2,838.50 | ||
| 1 | BP29-500500-0600 | 600 | 500 | 300 | 150 | £3,493.00 | ||
| 1 | BP29-500500-0750 | 750 | 500 | 300 | 150 | £4,457.84 | ||
| 1 | BP29-630630-0700 | 700 | 630 | 350 | 200 | £5,306.00 | ||
| 1 | BP29-630630-0850 | 850 | 630 | 350 | 200 | £5,912.67 | ||
| 1 | BP29-800800-0800 | 800 | 800 | 500 | 300 | £7,809.67 | ||
| 1 | BP29-800800-1000 | 1000 | 800 | 500 | 300 | £9,384.67 |
