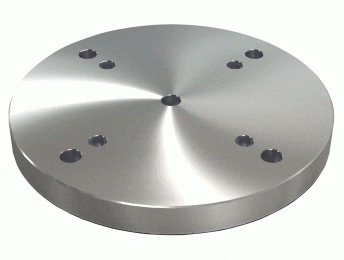

Plain Round Base Plate
Machinable Sub-Plate for 4th/5th Axis
Key Features
- Machinable to accept required hole pattern
- Ground Flat
- Five High Accuracy Location Holes
Description
Cast Iron Sub Plate to suit rotary table or indexer. Plain to allow for machining of hole patterns and features required for special jigs or fixtures. Ground flat with Locating Holes for precise loading and quick set-up.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Diameter (mm) | Thickness (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | BP16-50-0300 | 300 | 50 |
|
£732.67 | ||
| 2 | BP16-50-0400 | 400 | 50 |
|
£983.50 | ||
| 3 | BP16-50-0500 | 500 | 50 |
|
£1,324.17 | ||
| 4 | BP16-50-0600 | 600 | 50 |
|
£1,755.84 |
