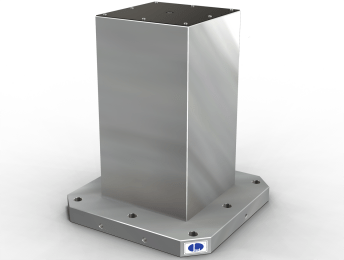

Plain Square Tooling Column
Machinable Cast Iron Tombstone
Key Features
- Machinable to accept required hole pattern
- Ground Flat and Parallel
- Threaded Holes for Side-Location
Description
Cast iron plain tooling cube with mounting holes. Plain to allow for the machining of hole patterns and features required for specific fixtures. Ground flat parallel and perpendicular for accuracy. Holes for side location to allow precise loading and setting up of the tombstone.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Size of Pallet (mm) | Height of Column (mm) | Profile of Column (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | BP07-300300-0500 | 300 | 500 | 150x150 |
|
£1,824.67 | ||
| 2 | BP07-400400-0500 | 400 | 500 | 250x250 |
|
£2,349.67 | ||
| 3 | BP07-400400-0650 | 400 | 650 | 250x250 |
|
£3,061.34 | ||
| 4 | BP07-500500-0600 | 500 | 600 | 300x300 |
|
£3,472.00 | ||
| 5 | BP07-500500-0750 | 500 | 750 | 300x300 |
|
£4,258.34 | ||
| 6 | BP07-630630-0700 | 630 | 700 | 350x350 |
|
£5,069.17 | ||
| 7 | BP07-630630-0850 | 630 | 850 | 350x350 |
|
£5,751.67 | ||
| 8 | BP07-800800-0800 | 800 | 800 | 500x500 |
|
£7,603.17 | ||
| 9 | BP07-800800-1000 | 800 | 1000 | 500x500 |
|
£8,988.00 | ||
| 10 | BP07-10001000-1000 | 1000 | 1000 | 600x600 |
|
£12,224.34 | ||
| 11 | BP07-10001000-1250 | 100 | 1200 | 600x600 |
|
£14,946.17 |
