Pole Extensons

To Suit Mastermill

Key Features

  • Transfer of the magnetic field without a significant loss of the holding force and speed in machining
  • The workpiece is accessible from 5 sides
  • Possibility to convert the extensions into various profiles to enable clamping of more complex shapes Possibility to use them as stop blocks for precise placement of the workpiece on the magnet or to prevent the displacement of the component during machining
  • Elimination of air gaps in irregular components to obtain the maximum holding force

Description

You can use the flexible pole extensions to clamp workpieces with uneven surfaces without deformation and a significant loss of holding force. You can machine the component from 5 sides in one operation. Flexible pole extensions can be adapted to the workpiece shape. They eliminate clamping stress and make it possible to raise the workpiece over the clamping area to allow machining from 5 sides in one clamping operation.Fixed pole extensions allow machining from five sides for workpieces with good flatness. Another typical use is determination of a plane using the flexible pole extensions in the case of machining of irregular components.

Estimated delivery: On Request

Dimensions

# Part No Description Price

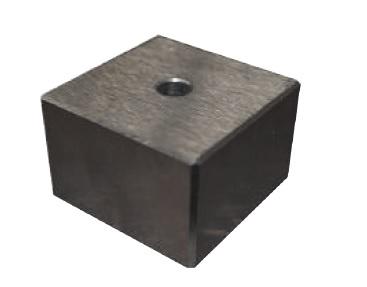

1 TB50FI Fixed Pole Extension £15.00
1 TB50FL Flexible Pole Extension £32.00
