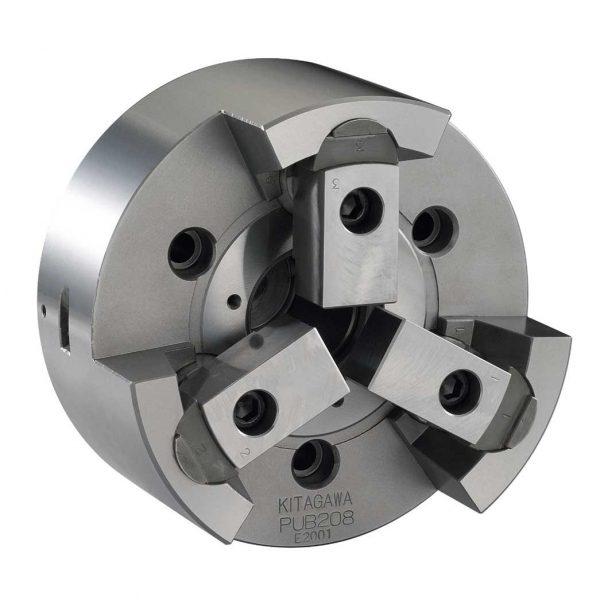

PUB Series
Open Centre Pull Lock Chuck
Key Features
- High gripping force with pull-back action
- Seating confirmation for use with automation
- Reduced grip loss from centriugal force
- Improved longevity and gripping accuracy
Description
Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa PUB series are pull lock chucks for external gripping for heavy cut machining. The PUB chucks also have a through bore to allow for compounets that need to be held with material down the bore.
Estimated delivery: On Request
Dimensions
| # | Part No | Jaw Stroke | Max Grip Force (kN) | Max. Speed (rpm) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | PUB206 | 5 | 58 | 7000 | £4,637.00 | ||
| 1 | PUB208 | 5 | 80 | 6000 | £5,668.00 | ||
| 1 | PUB210 | 5 | 100 | 4500 | £8,428.00 | ||
| 1 | PUB212 | 5 | 100 | 3600 | £11,892.00 |
