PW Series

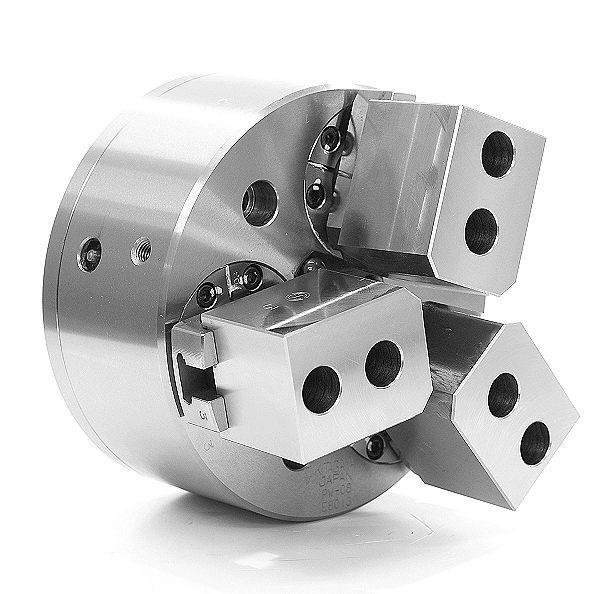

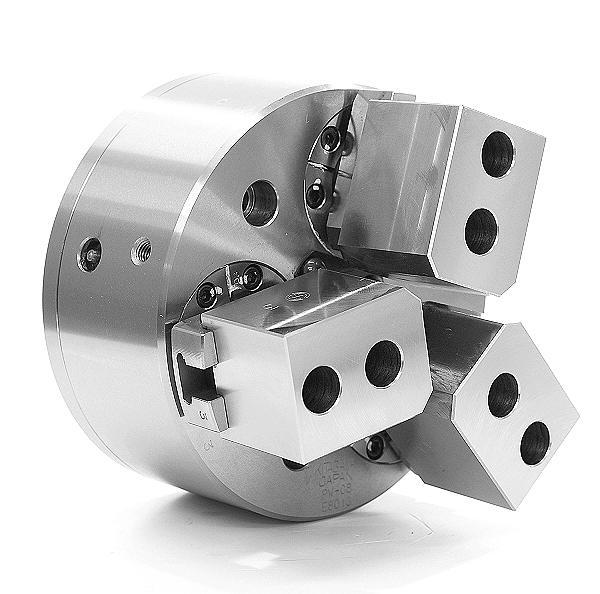

Three Jaw Power Wing Chuck
Key Features
- High gripping force with pull-back action
- 5 Degree angle equalisation
- Sealed unit for high durability
- Tapered part holding
Description
Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa PW series chucks have a pullback action with their clamping action giving a higher gripping force as well as allowing for tapered part holding. The series is perticularlly usefull for taking heaver machine cuts, reducing run times.
Estimated delivery: On Request

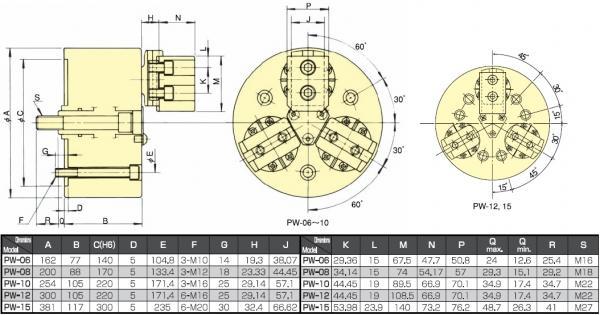

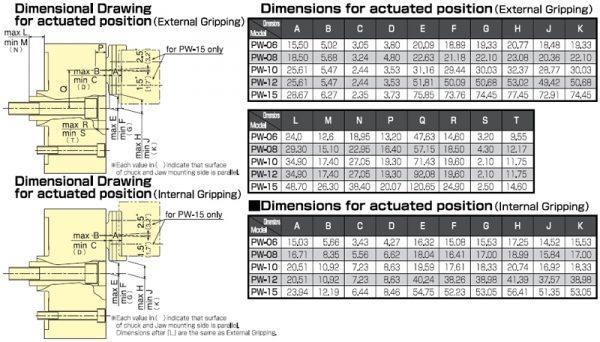

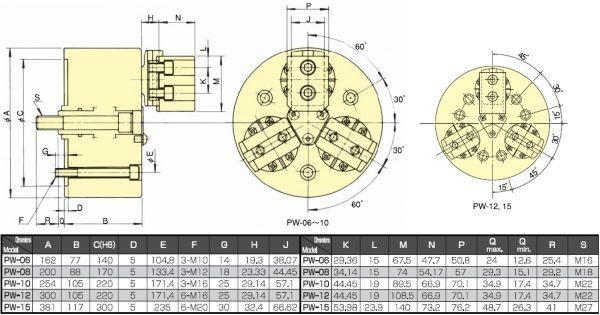

Dimensions
| # | Part No | Jaw Stroke | Max Grip Force (kN) | Max. Speed (rpm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | PW06 | 7.9 | 70 | 4200 |
|
£4,783.00 | ||
| 2 | PW08 | 9.5 | 96 | 3700 |
|
£5,503.00 | ||
| 3 | PW10 | 12.7 | 123 | 3400 |
|
£6,569.00 | ||
| 4 | PW12 | 12.7 | 123 | 2800 |
|
£7,852.00 | ||
| 5 | PW15 | 15.8 | 165 | 2000 |
|
£11,419.00 |
