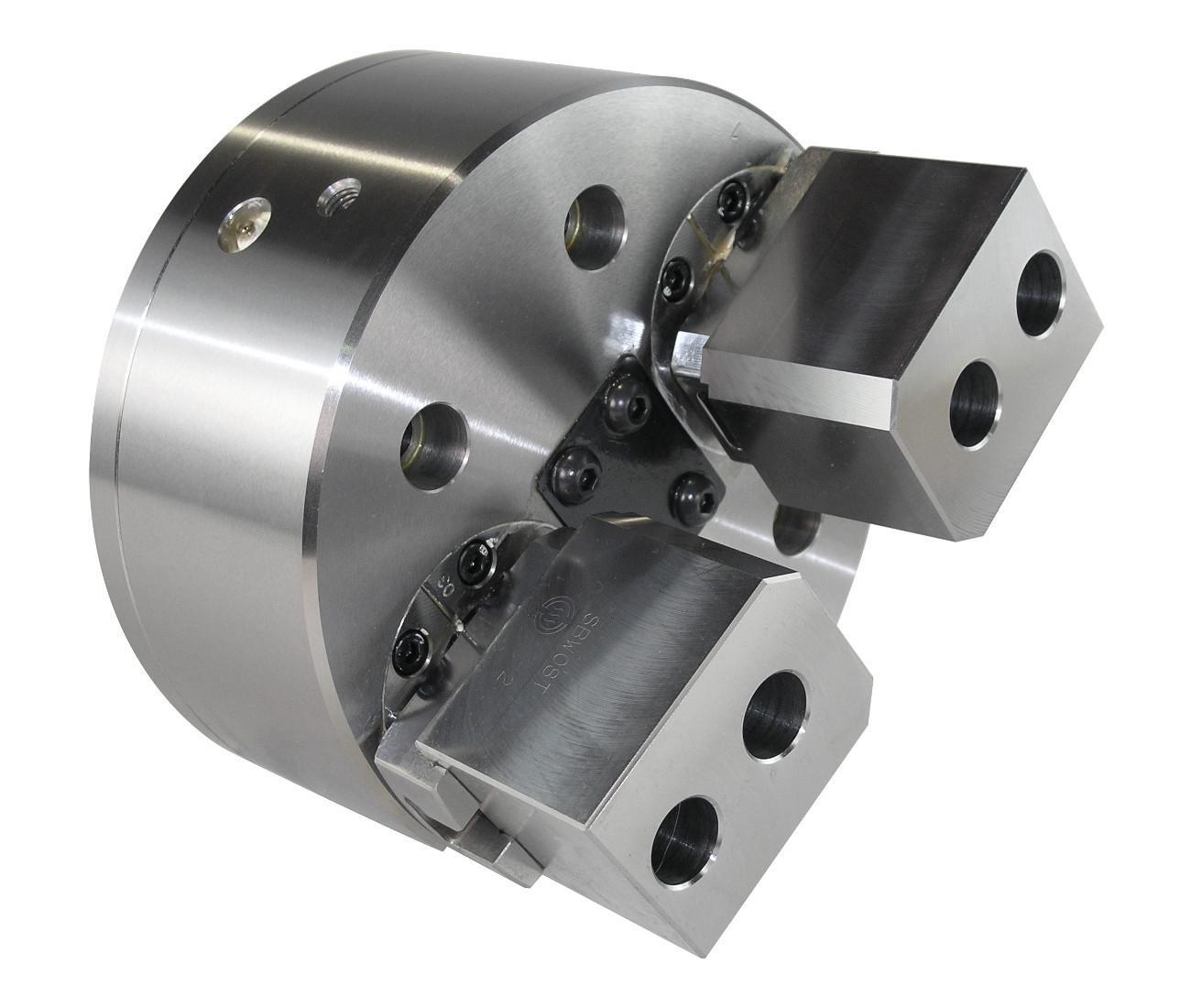

PWTC Series
Two Jaw Power Wing Compensating Chuck
Key Features
- High gripping force with pull-back action
- Better clearance on speicalist parts
- Sealed unit for high durability
- Tapered part holding
Description
Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa PWT series chucks are two jaw pullback action with their clamping action giving a higher gripping force as well as allowing for tapered part holding. The series is perticularlly usefull for taking heaver machine cuts, reducing run times. The PWC allow give compensation for rough casting parts.
Estimated delivery: On Request
Dimensions
| # | Part No | Jaw Stroke | Max Grip Force (kN) | Max. Speed (rpm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | PWT06SC | 7.9 | 46.6 | 4200 |
|
£7,004.00 | ||
| 2 | PWT08SC | 9.5 | 64 | 3700 |
|
£8,060.00 | ||
| 3 | PWT10SC | 12.7 | 82 | 3400 |
|
£9,618.00 | ||
| 4 | PWT12SC | 12.7 | 82 | 2800 |
|
£11,506.00 | ||
| 5 | PWT15SC | 15.8 | 110 | 2000 |
|
£14,966.00 |
