Description

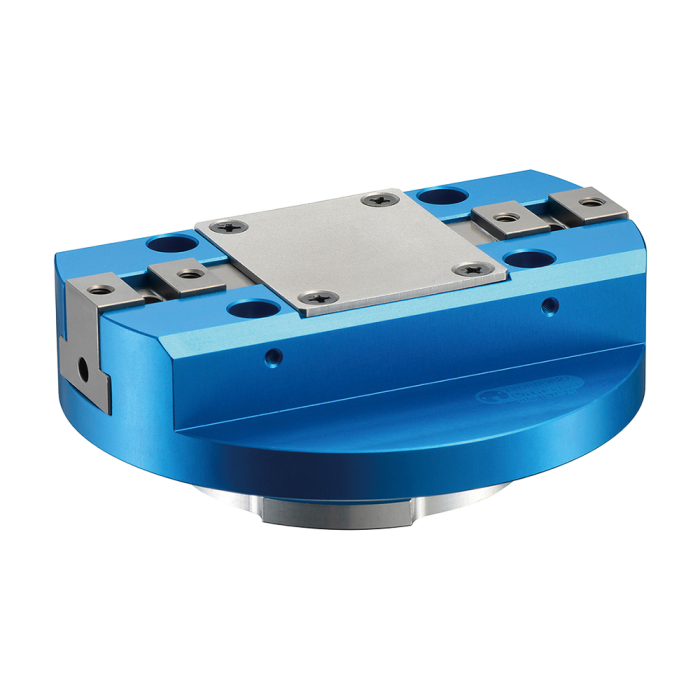

Quick plate exchange gripper two jaw faceplate

Quick jig exchange with easy operation, just loosen the lock nut Lightweight and compact Easy retrofit since it is manual exchange No need for teaching or adjustment at jig exchange Close Force(N): 750 Open Force(N): 800 * Air pressure set at 0.6 MPa. Measurement Distance L(mm): 20 Jaw Stroke: 11.2mm(dia.), 5.6mm(per finger)
