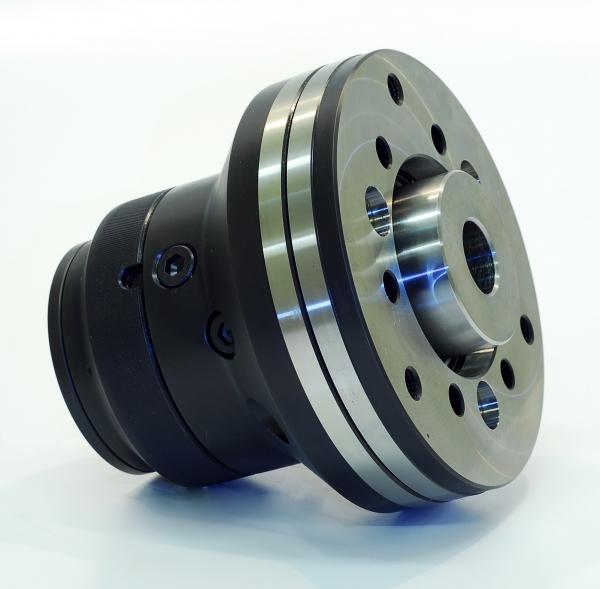

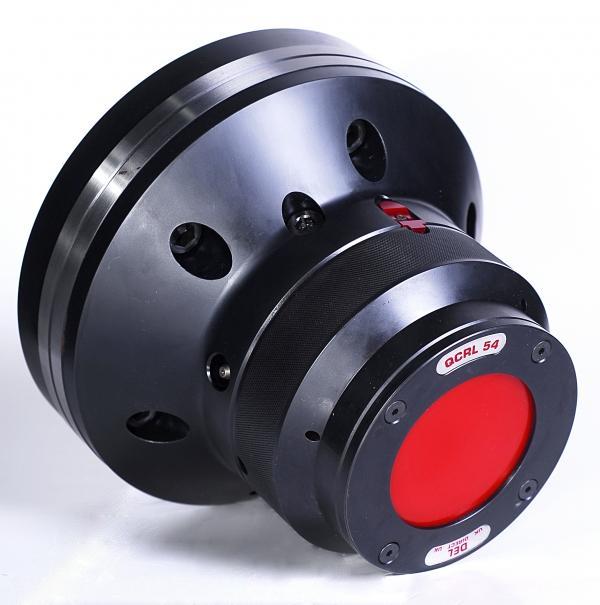

Quick Change Collet Chuck
54mm Capacity for 1st & 2nd Op
Key Features
- Can be used for 1st and 2nd Operation
- Deadlength Actuation Eleminates part movement when Clamping
- Case hardened, optimising the rigidity, strength and durability.
- Uses 2 Different Types of Collet
Description
Klamp QCRL54 collet chucks are suitable for spring and varibore collets increasing its flexibility. Varibore collets allow rough, unfinished bar to be machined in the first operation and spring collets can be used for high accuracy in the second operation. Spring Collets, D853, and not readily available and are made to order. If you do not have pre-existing collets please look at the QCRL60. Workpiece remains in a fixed position during actuation allowing for precise z-axis positioning. A tapered sleeve is pushed forward, compressing the collet and gripping the workpiece.
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Spindle Mount | Capacity (mm) | Length (mm) | Spring | Varibore | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | QCRL54 | 170mm | 54 | 175 | D853 | D120 | £1,495.00 | ||
| 1 | QCRL54A5 | A2-5 | 54 | 184 | D853 | D120 | £1,699.00 | ||
| 1 | QCRL54A6 | A2-6 | 54 | 169 | D853 | D120 | £1,699.00 | ||
| 1 | QCRL54A8 | A2-8 | 54 | 169 | D853 | D120 | £1,699.00 |
