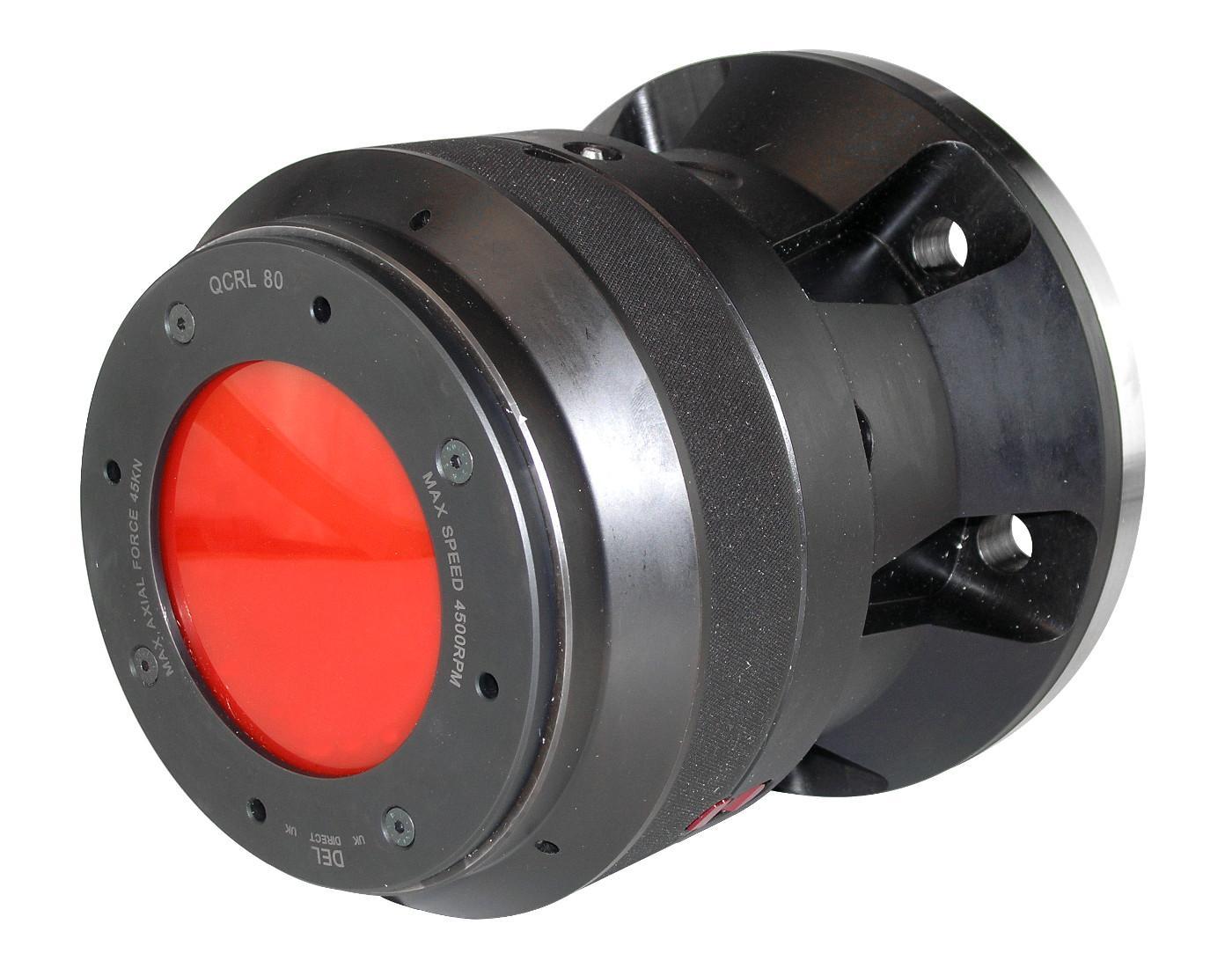

Quick Change Collet Chuck

80mm Capacity for 2nd Op

Key Features

  • For 2nd Operation only
  • Deadlength Actuation Eleminates part movement when Clamping
  • Case hardened, optimising the rigidity, strength and durability.

Description

Klamp QCRL80 collet chucks are suitable for spring collets only. Spring collets can be used for high accuracy in the second operation. Workpiece remains in a fixed position during actuation allowing for precise z-axis positioning. A tapered sleeve is pushed forward, compressing the collet and gripping the workpiece.

Estimated delivery: Next Day (subject to availability)

Dimensions

# Part No Spindle Mount Capacity (mm) Length (mm) Spring Varibore Price
1 QCRL80A8 A2-8 80 176 D193E D660 £3,053.00
