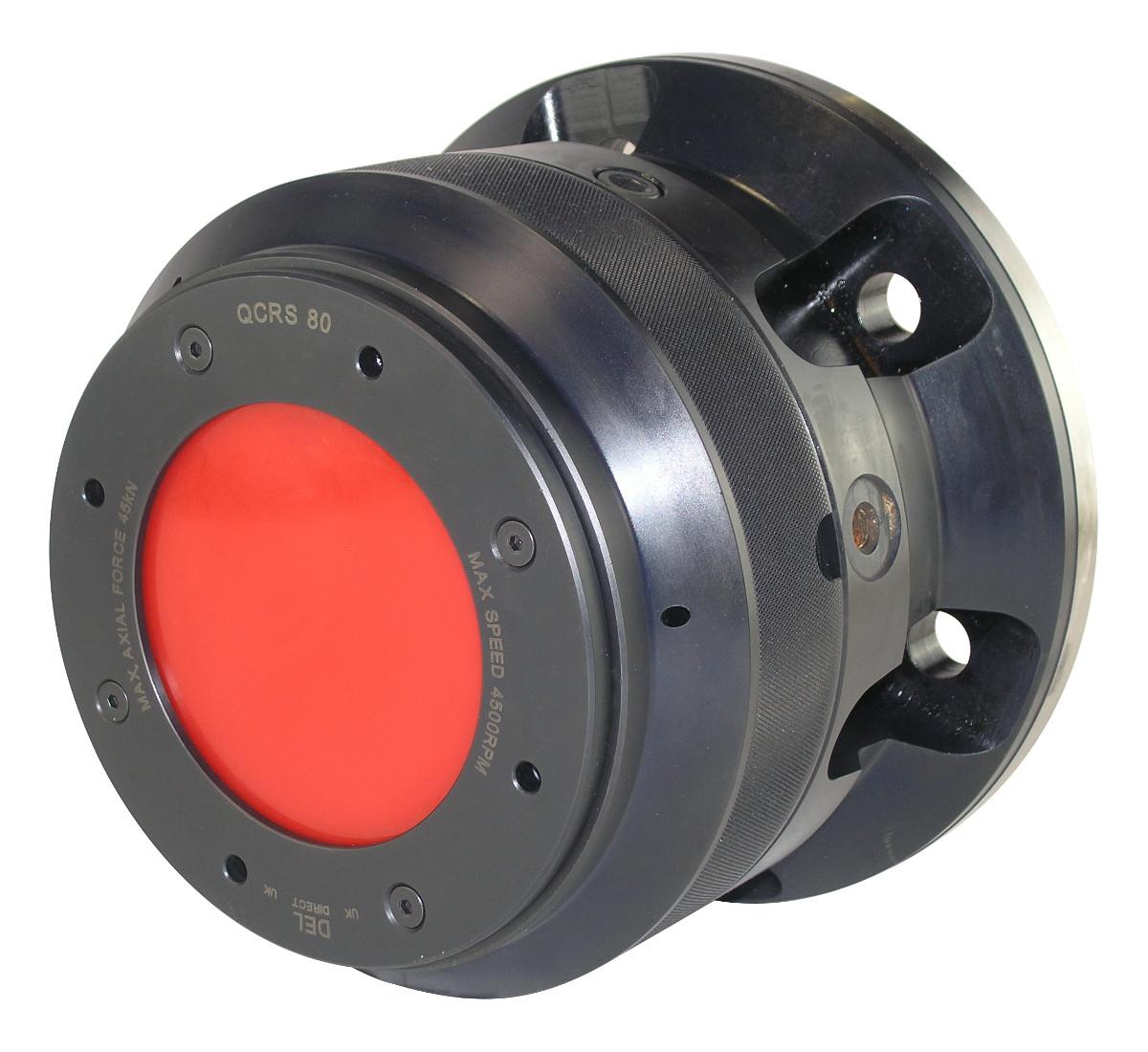

Quick Change Collet Chuck
80mm Capacity for 1st Op
Key Features
- Can be used for 1st Operation only
- Deadlength Actuation Eleminates part movement when Clamping
- Case hardened, optimising the rigidity, strength and durability.
- Varibore Collets have a large range allowing for easy holding of Rough Bar
Description
Klamp QCRS80 collet chucks are suitable for collets which have a large gripping range. Allowing the collet chuck to handle very rough and unfinished bar, preparing it for a high accuracy second operation. Workpiece remains in a fixed position during actuation, allowing for precise z-axis positioning. A tapered sleeve is pushed forward, compressing the collet and gripping the workpiece
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Spindle Mount | Capacity (mm) | Length (mm) | Varibore | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | QCRS80A8 | A2-8 | 80 | 162 | D175 | £3,053.00 |
