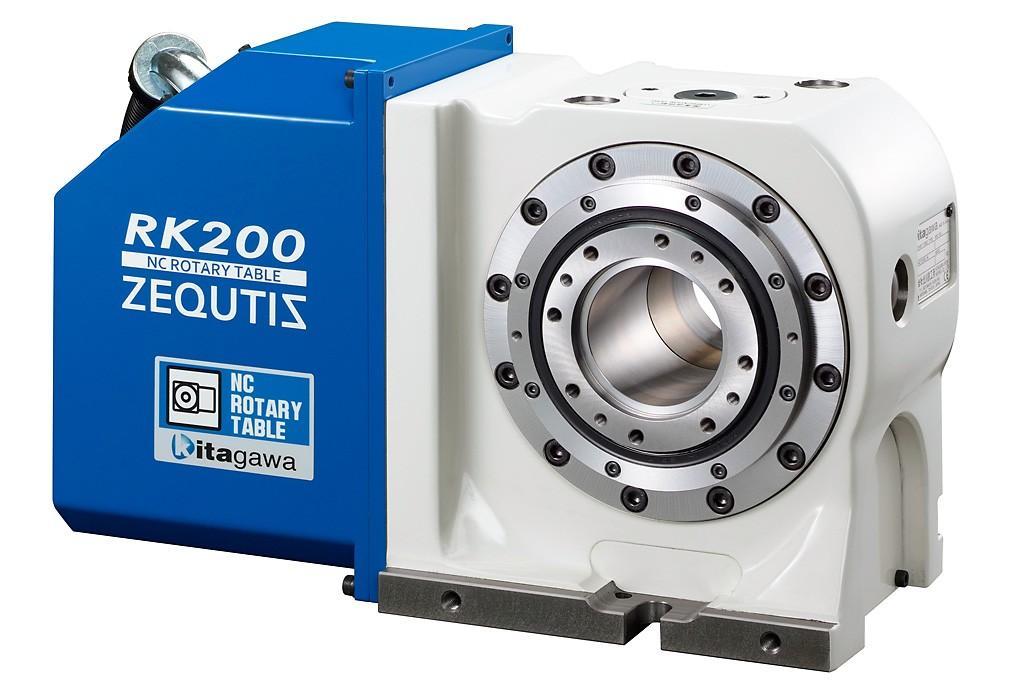

RK Series
Ultra Fast and Zero Backlash
Key Features
- Very high speed, 180° in just 0.46 seconds
- large through bore of 70mm
- Compact size and footprint
- Zero Backlash roller gear reducer
Description
Rather than utilising traditional gear sets, the RK200 is fitted with a free roller gear cam reducer. The removal of parameter adjustment that is required by direct drive rotary tables means that a shorter indexing time is achieved to 180°, with the RK200 able to index through 90° in just 0.31 seconds and 180° in just 0.46 seconds. The RK200 rotary table is ideal for applications where rotating speed is a high priority rather than clamping torque. RAV specification comes with an external controller that functions off an M-Code, used for machines that do not have 4th axis preparation.
Estimated delivery: On Request
Dimensions
| # | Part No | Table Dia. (mm) | Centre Bore (mm) | Centre Height (mm) | Clamping Torque (Nm) | Allowable Inertia (kgm²) | Repeatability (sec) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | RK200 | 114 | 70 | 150 | 108 | 0.6 | 4 |
|
£18,494.00 | ||
| 2 | RK200LAV00 | 114 | 70 | 150 | 108 | 0.6 | 4 | £24,728.00 |
