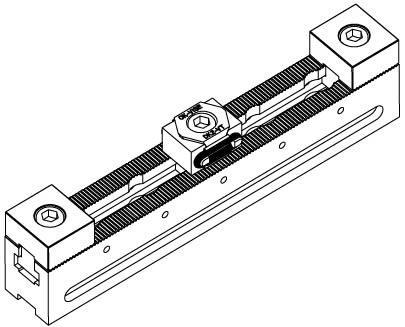

RM Multi-Rail Fixture Set
To Suit 2 Components
Key Features
- Maximise your machining envelope
- High precision and high clamping force
- Wide range of accessories for flexibility
- Up to four workpieces at a time
Description
Multi-Rail can accommodate OK-Vise clamps, stops, parallels and other accessories to clamp multiple components and maximise your milling work area. All the clamping and location elements on the rail can be positioned according to the size and shape of the workpieces to swiftly adapt from clamping multiple small workpieces to clamping single large workpieces. This set includes 1 clamp and 2 stops to mount a maximim of 2 workpieces.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Description | No. Parts in this Package | Price | ||
|---|---|---|---|---|---|---|
| 1 | SRM-132GD1 | Fixturing Package to suit 2 components | 1 | £ Price on application | n/a | |
| 1 | RM-300 | 300mm Base Rail | 1 | £424.90 | ||
| 1 | RMS-S | Smooth Stop Module | 4 | £109.53 | ||
| 1 | RMC-DS | Smooth Clamp Module | 1 | £119.83 |
