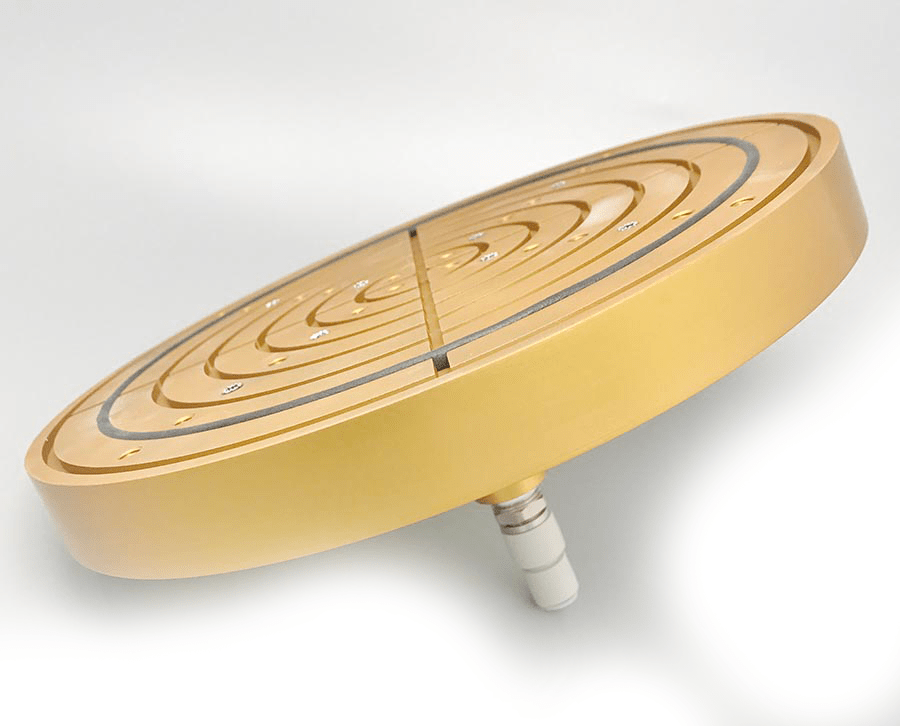

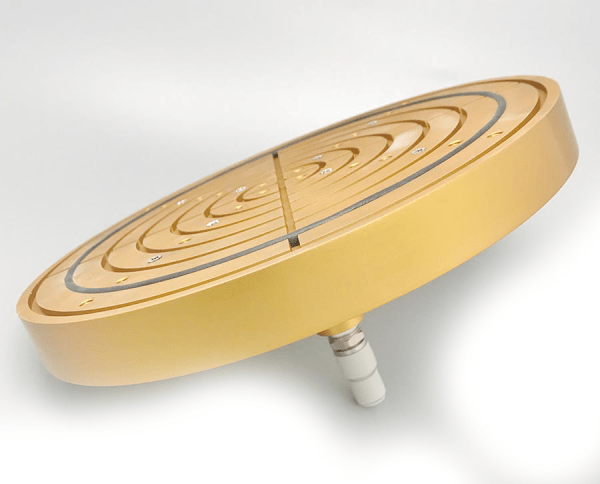

Rotary Vacuum Chuck
Vacuum Clamping for Turning
Key Features
- Excellent for thin material
- Compatible with lathes and rotary tables
- Includes rotary joint
- Can be combined with serrated grippers
Description
A vacuum system for your lathe or rotary table which provides on option for those applications that cannot be held by traditional methods. This rotary vacuum chuck can be fitted with vacuum grippers that will bite into the workpiece and increase the lateral load by up to 400%. The ring grooves in the face allow the gasket to be positioned to suit the workpiece and the included rotary fitting will operate up to 1100 RPM. Recommended for light duty machining.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Description | Diameter (inch) | Thickness (inch) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | 46401 | Rotary Vacuum Kit (includes Vacuum Plate | Rotary Fitting | 4 Grippers | Tubing and Gasket) | £ Price on application | n/a | |||
| 1 | 46400 | Rotary Vacuum Plate with M6 tapped holes | 9.85 | 1 | £ Price on application | n/a | |
| 1 | 46450 | Rotary Sacrificial Plate | 9.85 | 0.375 | £ Price on application | n/a | |
| 1 | 46455 | 8mm Rotary fitting | £ Price on application | n/a | |||
| 1 | 45155 | M6 Vacuum Grippers (2/pk) | n/a | ||||
| 1 | 45111 | Vacuum Gasket (black) sold by foot | 0.17 | £10.02 |
