Screws to suit Gripper Jaws

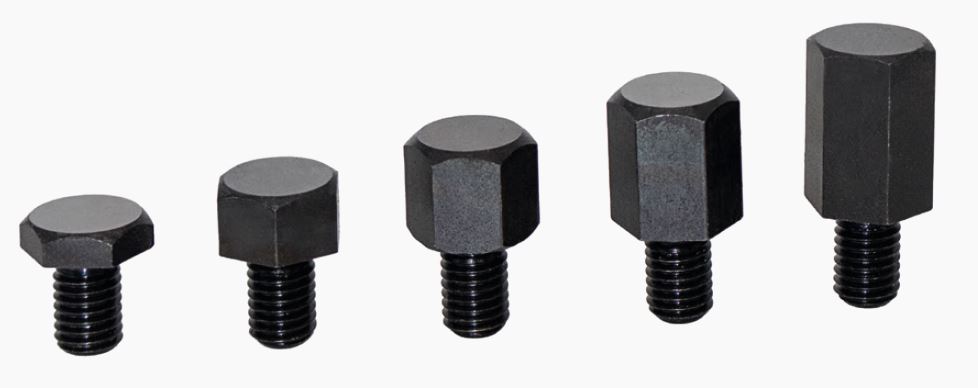

Ground Pads to raise components on Gripper Jaws
Key Features
- Ground Flat to ensure accurate position of component
- Allows for Gripping on less Material
Description
Threaded Pads with ground faces allowing the component to be raised up from the base of the jaw. This means that it is possible to accurately hold the workpiece on less excess material.
Estimated delivery: 5-7 Working Days (subject to availability)

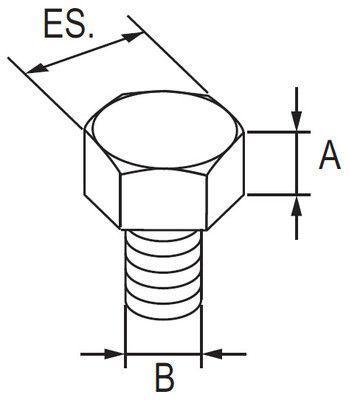

Dimensions
| # | Part No | Thread Size | Pad Depth (mm) | Price | ||
|---|---|---|---|---|---|---|
| 1 | 2750 | M6 | 5 | £22.00 | ||
| 1 | 2751 | M6 | 10 | £22.00 | ||
| 1 | 2752 | M6 | 15 | £22.00 | ||
| 1 | 2753 | M6 | 20 | £22.00 | ||
| 1 | 2760 | M8 | 5 | £22.00 | ||
| 1 | 2761 | M8 | 10 | £22.00 | ||
| 1 | 2762 | M8 | 15 | £22.00 | ||
| 1 | 2763 | M8 | 20 | £22.00 | ||
| 1 | 2770 | M10 | 5 | £22.00 | ||
| 1 | 2771 | M10 | 10 | £22.00 | ||
| 1 | 2772 | M10 | 15 | £22.00 | ||
| 1 | 2773 | M10 | 20 | £22.00 | ||
| 1 | 2774 | M10 | 25 | £26.00 | ||
| 1 | 2775 | M10 | 30 | £26.00 | ||
| 1 | 2776 | M10 | 35 | £26.00 |
