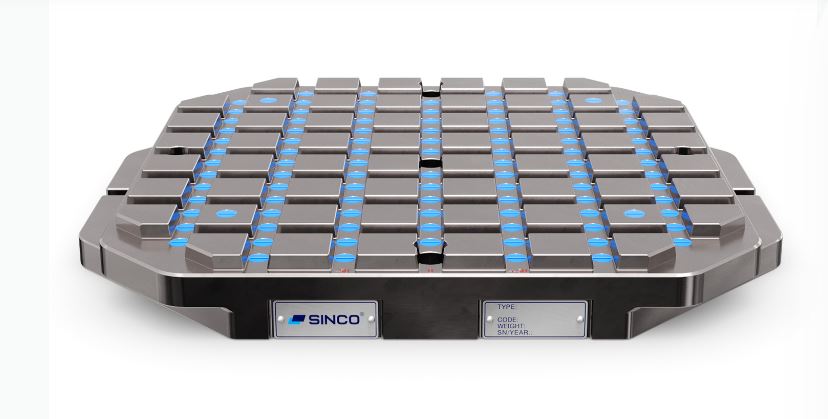

Series 5000 MultiZero Manual Plates
Series 5000 MultiZero Manual Plates
Key Features
- MultiZero® Plate Series 5000 Advantages• Used for clamping pallets, workpieces, Vises, and fixtures directly• Zero point at every cross section of centering slots• Zero points in array of 50x50 mm at type P50 and array of 100x100 mm at type P100• Clamping thread holes M12 in array of 25x25 mm
- • Great flexibility and machine table usage due to large number of zero points• One step positioning and clamping at every zero point• High repeatability and system accuracy with every clamping• High retention forces (65kN) and highest allowed lateral forces at every zero point
- • Unique system for compensation of vibrations and thermal expansions• System provides automatic clamping with pneumatic modules and the best compensation for the lateral forceson the market• Good for clamping complex asymmetrical parts for single-part production
- • Clamping system capable of quickly adjusting to various needs• Great modularity with large selection of various types and sizes of pallets, fixtures, and Vises• Compatible with classic tightening methods and clamping elements
Description
Series 5000 MultiZero Plates family 5000 is designed to cover five axis machines with square table sizes (AxA). With great selection of base plates, pallets, and fixtures, the MultiZero system is made to be flexible enough for serial production and cover clamping of complex workpieces at the same time. The MultiZero System is designed to be very simple and easy to use. Easy set-up, repeatability in clamping and set-up of the machine makes it ideal for all types of production from single-part production, low-volume to serial production.
Dimensions
| # | Part No | Dimensions (mm) | Zero Points | Thread Holes M12 | Clamping Bolts | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 1B1-5300-0 | 296 (240) x 240 x 50 | 21 | 56 | 7 x M12 | £1,643.95 | ||
| 1 | 1B1-5400-0 | 376 (320) x 320 x 50 | 25 | 80 | 7 x M12 | £2,189.59 | ||
| 1 | 1B1-5500-0 | 456 (400) x 400 x 50 | 45 | 148 | 7 x M12 | £2,930.83 | ||
| 1 | 1B1-5630-0 | 556 (500) x 500 x 50 | 77 | 140 | 11 x M12 | £4,123.43 | ||
| 1 | 1B1-5800-0 | 694 (630) x 630 x 50 | 117 | 358 | 10x M16 + 1x M12 | £5,919.39 | ||
| 1 | 1B1-5310-0 | 296 (240) x 240 x 50 | 5 | 46x (Slot bottom) / 20x (Plate top) | 7x M12 | £1,396.49 | ||
| 1 | 1B1-5410-0 | 376 (320) x 320 x 50 | 9 | 52x (Slot bottom) / 44x (Plate top) | 7x M12 | £1,861.14 | ||
| 1 | 1B1-5510-0 | 456 (400) x 400 x 50 | 9 | 76x (Slot bottom) / 68x (Plate top) | 7x M12 | £2,491.23 | ||
| 1 | 1B1-5631-0 | 556 (500) x 500 x 50 | 21 | 144x (Slot bottom) / 96x (Plate top) | 11 x M12 | £3,504.93 | ||
| 1 | 1B1-5810-0 | 694 (630) x 630 x 50 | 25 | 196x (Slot bottom) / 168x (Plate top) | 11 x M12 | £5,031.54 |
