Series 5000 MultiZero Pneumatic Plates
Series 5000 MultiZero Pneumatic Plates
Description
MultiZero® Pneumatic Plate• Used for clamping pallets, workpieces, vises and fixtures automatically• Supports standard manual clamping of pallets, workpieces, visesand fixtures• Slot pitch 50 mm• Zero point array 50 x 50• Pneumatic zero-point array 200 x 200
Dimensions
| # | Part No | Dimensions (mm) | Pneumatic zero points | Zero points | Thread holes M12 | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 1B1-5320-0 | 296 (240) x 240 x 50 | 1 | 12 | 37 | £2,664.49 | ||
| 1 | 1B1-5420-0 | 376 (320) x 320 x 50 | 1 | 16 | 64 | £3,186.55 | ||
| 1 | 1B1-5520-0 | 456 (400) x 400 x 50 | 4 | 13 | 76 | £7,152.05 | ||
| 1 | 1B1-5521-0 | 456 (400) x 400 x 50 | 2 | 27 | 114 | £4,960.13 | ||
| 1 | 1B1-5632-0 | 556 (500) x 500 x 50 | 4 | 41 | 168 | £8,220.90 | ||
| 1 | 1B1-5633-0 | 556 (500) x 500 x 50 | 2 | 59 | 202 | £6,028.98 | ||

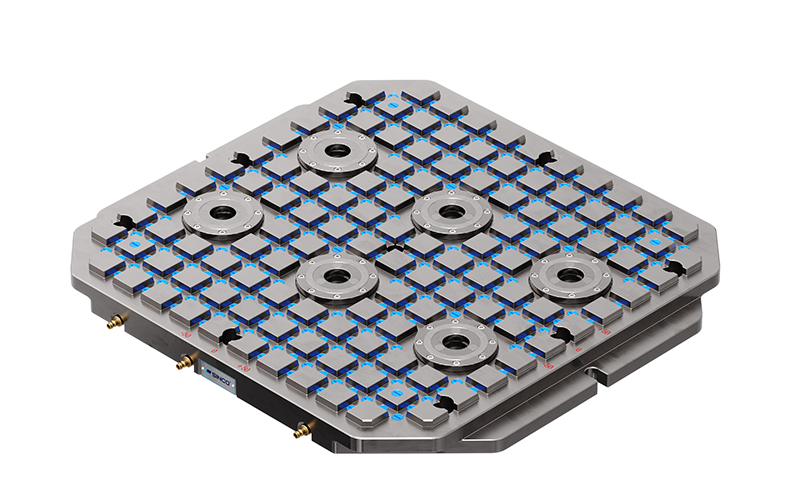

| 1 | 1B1-5820-0 | 694 (630) x 630 x 50 | 6 | 63 | 266 | £12,126.29 | ||
| 1 | 1B1-5821-0 | 694 (630) x 630 x 50 | 2 | 99 | 334 | £7,742.44 |
