Description

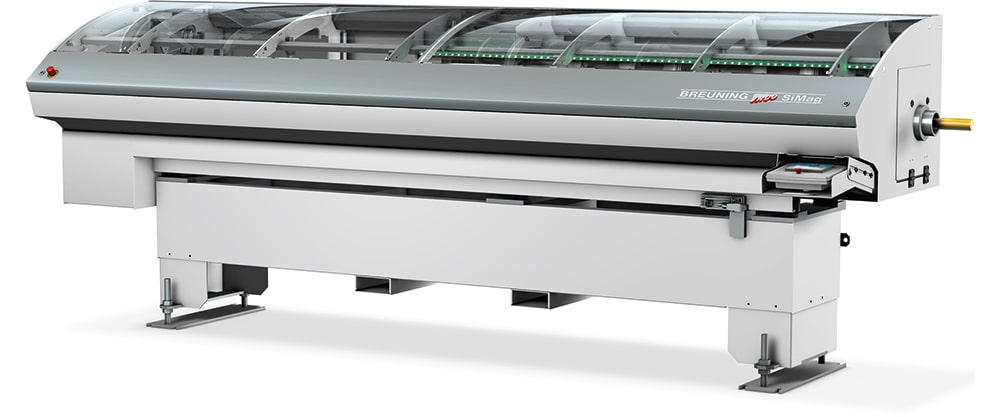

Single-channel loading magazine

SiMag

Application area:

• Ideal for medium to large-sized batches

Properties:

• Short changeover times, easy handling
• Extremely smooth running, hydrodynamic bearing, 360° closed guide channels
• High operating comfort thanks to a 18 cm (7″) widescreen touch display
• Process-reliable supply of rotationally symmetrical profile material
• Suitable for long turners (optional) electronic synchronizing device, optimal material guidance up to the clamping device with a telescopic system
• Easy conversion from long to short turning mode at the touch of a button

Working range:

• Round material, diameters from 5 to 130 mm
• Bar length 3200 mm, 4200 mm and 6200 mm (10000 mm)

Special features:

• Easy replacement of the spindle liner tubes through an axial slide of the magazine (optionally radial swivel-out)
• Process-integrated remnant disposal through the machine (optionally by the magazine)
• Machine-protection, vibration-absorbing design; easy replacement of the spindle liner tubes thanks to radial slide of the magazine (optionally axial slide)
