Description

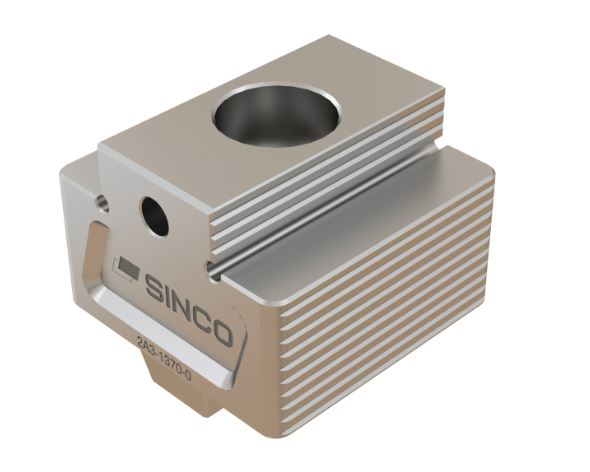

Sinco MultiZero Support MultiZero® Support W50 Fast. Accurate. Reliable.Used as a workpiece support on the MultiZero Plate or MultiZero Pallet. Rectangular supports with various support heights Tightened with M12 screw from the top Single positioning rib on the bottom; Type C – centering rib in the center, Type E – centering rib in excentre Supporting the workpiece with surfaces parallel with positioning rib and with top surfaces M6 thread hole for supporting elements on the sides Sinco
Dimensions
| # | Part No | Dimensions (mm) | Support Height (mm) | Clamping Force (kN) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | 2A3-1370-0 | 50x50x43 | 25 & 35 | 65 | £375.94 | ||
| 1 | 2A3-1380-0 | 50x50x43 | 25 & 35 | 65 | £350.00 | ||
| 1 | 2A3-1390-0 | 50x50x33 | 25 | 65 | £285.20 | ||
| 1 | 2A3-1400-0 | 50x50x58 | 30 | 65 | £410.13 | ||
| 1 | 2A3-1410-0 | 50x50x58 | 35 | 65 | £393.63 | ||
| 1 | 2A3-1420-0 | 50x75x43 | 25 & 35 | 65 | £453.73 | ||
| 1 | 2A3-1430-0 | 50x75x58 | 35 | 65 | £492.60 | ||
| 1 | 1A3-2035-0 | 50x58 | 35 & 50 | 65 | £285.20 | ||
| 1 | 1A3-2040-0 | 50x43 | 25 & 35 | 65 | £246.30 | ||
| 1 | 1A3-2045-0 | 40x63 | 50 | £272.24 |
