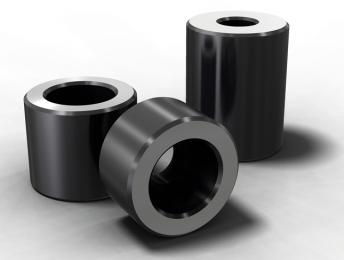

Spacer (SVF-S05)
Key Features
- Maximise your machining envelope
- High precision and high clamping force
- Wide range of accessories for flexibility
- Manufactured from tool steel treated to HRC 55 and ground
Description
Spacer to suit SVF-S06 workstops for the SVF range of flexible vices. These spacers come in 2 different diameters and 3 different lenghs for easy positioning of workpiece stop plates.
Estimated delivery: On Request

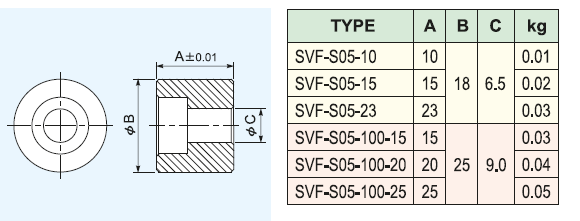

Dimensions
| # | Part No | Diameter (mm) | Length (mm) | Bolt Size | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | SVF-S05-10 | 18 | 10 | M6 |
|
£7.94 | ||
| 2 | SVF-S05-15 | 18 | 15 | M6 |
|
£8.29 | ||
| 3 | SVF-S05-23 | 18 | 23 | M6 |
|
£9.45 | ||
| 4 | SVF-S05-100-15 | 25 | 15 | M8 |
|
£9.22 | ||
| 5 | SVF-S05-100-20 | 25 | 20 | M8 |
|
£9.45 | ||
| 6 | SVF-S05-100-25 | 25 | 25 | M8 |
|
£9.57 |
