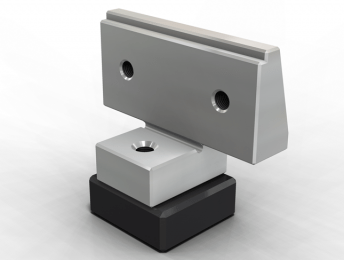

Step Moveable Jaw (SVF-ABS04)
For use on all series
Key Features
- Maximise your machining envelope
- High precision and high clamping force
- Wide range of accessories for flexibility
- Manufactured from tool steel treated to HRC 55 and ground
Description
movable stepped wedge jaws for the SVF range of flexible vices. These jaws have either 2mm or 5mm steps and are tapped to accept top jaws or workstops. These jaws are for use on all series of SVF vices.
Estimated delivery: On Request

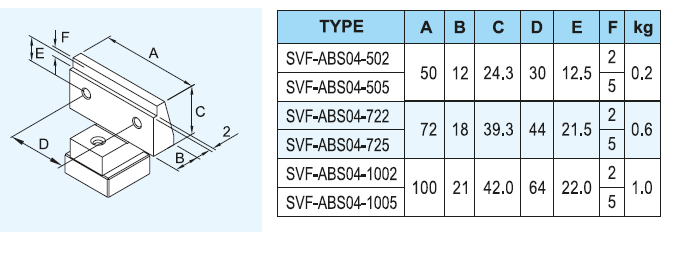

Dimensions
| # | Part No | Length (mm) | Width (mm) | Height (mm) | Series | Step (mm) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SVF-ABS04-502 | 12 | 50 | 24.3 | all | 2 |
|
£82.84 | ||
| 2 | SVF-ABS04-505 | 12 | 50 | 24.3 | all | 5 |
|
£82.84 | ||
| 3 | SVF-ABS04-722 | 18 | 72 | 39.3 | all | 2 |
|
£102.67 | ||
| 4 | SVF-ABS04-725 | 18 | 72 | 39.3 | all | 5 |
|
£102.67 | ||
| 5 | SVF-ABS04-1002 | 21 | 100 | 42 | all | 2 |
|
£121.34 | ||
| 6 | SVF-ABS04-1005 | 21 | 100 | 42 | all | 5 |
|
£121.34 |
