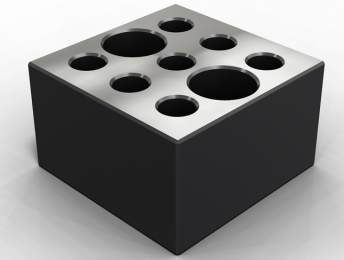

SU06 Square Adaptor
Mounting block for toolmakers clamps
Key Features
- Accept a variety of workstops and clamps
- Allows easy mounting for components onto the machine bed
- Heat treated to HRC 40
Description
These multipurpose square adapters will accept a variety of Leave workstops and clamps. They can be mounted to Leave standard base plates or incorporated into dedicated fixtures. They are manufactured from S45C(JIS) / CK45(DIN), heat treated to HRC 40 and supplied with a black oxide surface finish.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Height (mm) | Width (mm) | Length (mm) | Bolt Size | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | SU06-1230 | 30 | 85 | 85 | M12 | £44.92 | ||
| 1 | SU06-1240 | 40 | 85 | 85 | M12 | £52.27 | ||
| 1 | SU06-1250 | 50 | 85 | 85 | M12 | £62.30 | ||
| 1 | SU06-1630 | 30 | 85 | 85 | M16 | £44.34 | ||
| 1 | SU06-1640 | 40 | 85 | 85 | M16 | £52.27 | ||
| 1 | SU06-1650 | 50 | 85 | 85 | M16 | £61.95 |
