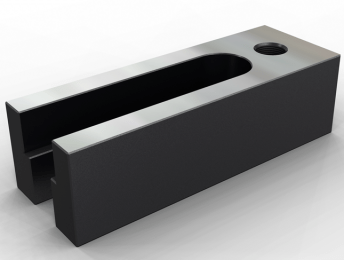

SU09 Extension Support
Mounting Support for toolmakers clamps
Key Features
- Increase workpiece position flexibility
- Can mount to standard baseplates or t-slots
- Heat treated to HRC40
- Accepts a variety of stops and clamps
Description
These extension supports are positioning aids for the Leave range of workstops and clamps. They feature a slot for mounting and a threaded hole for installing workpiece clamps or supports. They can be incorporated into dedicated fixtures or mounted to standard baseplates and t-slot tables to increase the flexibility of workpiece positioning.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Width (mm) | Length (mm) | Height (mm) | Mounting slot (mm) | Tapped Hole | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SU09-12120-30 | 40 | 120 | 30 | 13 | M12 | £43.64 | ||
| 1 | SU09-16140-30 | 40 | 120 | 40 | 13 | M12 | £48.30 | ||
| 1 | SU09-12120-40 | 50 | 140 | 30 | 17 | M16 | £47.14 | ||
| 1 | SU09-16140-40 | 50 | 140 | 40 | 17 | M16 | £54.02 |
