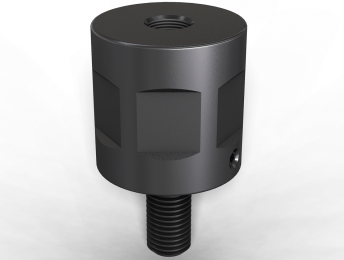

SU10 Riser Cylinder
Riser for use with toolmakers clamps
Key Features
- Increase workpiece position flexibility
- Can mount to standard baseplates or t-slots
- Heat treated to HRC38
- Accepts a variety of stops and clamps
Description
These riser cylinders are extension supports for the Leave range of workstops and clamps. They can be incorporated into dedicated fixtures or mounted to standard baseplates and t-slot tables to increase the flexibility of workpiece positioning.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Height (mm) | Thread | Body Diameter (mm) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | SU10-1250 | 50 | M12 | 40 | £21.70 | ||
| 1 | SU10-1265 | 65 | M12 | 40 | £24.04 | ||
| 1 | SU10-1280 | 80 | M12 | 40 | £26.14 | ||
| 1 | SU10-1650 | 50 | M16 | 50 | £25.67 | ||
| 1 | SU10-1665 | 65 | M16 | 50 | £28.59 | ||
| 1 | SU10-1680 | 80 | M16 | 50 | £31.62 |
