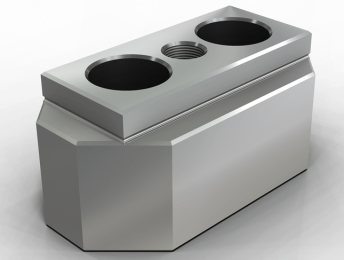

SU12 Positioning Edge Support
Support and Locating Part for Baseplates
Key Features
- Increase workpiece position flexibility
- Can mount to standard baseplates or t-slots
- Heat treated to HRC45
- Accepts a variety of clamps
Description
These Positioning edge supports are positioning aids for the Leave range of workstops and clamps. They feature precision holes for mounting, a threaded hole for a clamp and a 360 degree precision shelf for workpiece location. They can be incorporated into dedicated fixtures or mounted to standard baseplates and t-slot tables to increase the flexibility of workpiece positioning.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Thread | Mount pitch (mm) | Shelf Height (mm) | Mount holes (mm F7) | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | SU12-1230 | M12 | 50 | 30 | 12 | £126.35 | ||
| 1 | SU12-1240 | M12 | 50 | 40 | 12 | £126.35 | ||
| 1 | SU12-1630 | M16 | 50 | 30 | 16 | £126.35 | ||
| 1 | SU12-1640 | M16 | 50 | 40 | 16 | £126.35 |
