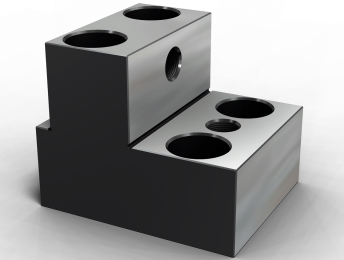

SU13 Positioning Edge Support

Support and Locating Part for Baseplates

Key Features

  • Increase workpiece position flexibility
  • Can mount to standard baseplates or t-slots
  • Heat treated to HRC45
  • Accepts a variety of fixed and adjustable workstops

Description

These Positioning edge supports are positioning aids for the Leave range of workstops and clamps. They feature precision holes for mounting, threaded holes for fixed or adjustable workstops and precision shelves on 2 sides for workpiece location. They can be incorporated into dedicated fixtures or mounted to standard baseplates and t-slot tables to increase the flexibility of workpiece positioning.

Estimated delivery: 3-5 Working Days (subject to availability)

Dimensions

# Part No Thread Mount pitch (mm) Shelf Height (mm) Mount holes (mm F7) Price
1 SU13-1240 M12 50 40 12 £182.59
1 SU13-1640 M16 50 40 16 £182.59
