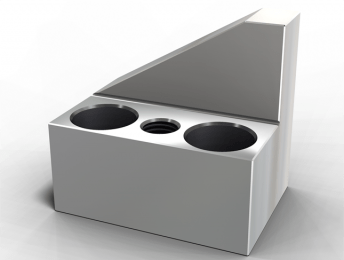

SU15 Split V Block
Key Features
- Combine with SU14 to create and adjustable V Block
- Can mount to standard baseplates or t-slots
- Heat treated to HRC45
- 50mm to 600mm diameter capacity
Description
This split V Block can be combined with SU14 to create an adjustable V Block set which will accept workpieces with diameters from 50mm to 600mm. They can be incorporated into dedicated fixtures or mounted to standard baseplates and t-slot tables to increase the flexibility of workpiece positioning. These V Blocks are precision ground and heat treated to HRC 45.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Total Height (mm) | Mount Pitch (mm) | Max Diameter (mm) | Min Diameter (mm) | Thread | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SU15-1250-600 | 80 | 50 | 50 | 600 | M12 | £141.99 | ||
| 1 | SU15-1650-600 | 80 | 50 | 50 | 600 | M16 | £141.99 |
