SVF-CB

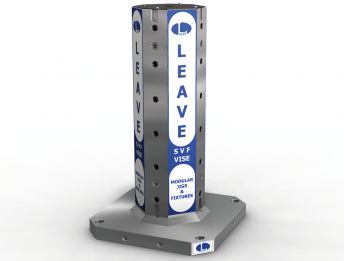

Cubes for horizontal machines
Key Features
- Maximise your machining envelope
- High precision and high clamping force
- Wide range of accessories for flexibility
- Multiple operations on multiple workpieces
Description
Get your horizontal milling machine up and running fast with the SVF-CB range of cubes. Each cube will accept four SVF-A series flexible vices with each vice holding multiple workpieces. There is a wide range of accessories available for the SVF range of vices to create a flexible workholding system capable of handling regular and irregular shapes. Simple re-positioning of the jaws allows the system to switch from clamping multiple small componentsd to single large components. The SVF-CB series of cubes is available in a range of sizes to suit pallets from 300mm. Please see the SVF-A series of flexible vices for more information on clamping quantities and capacities.
Estimated delivery: On Request

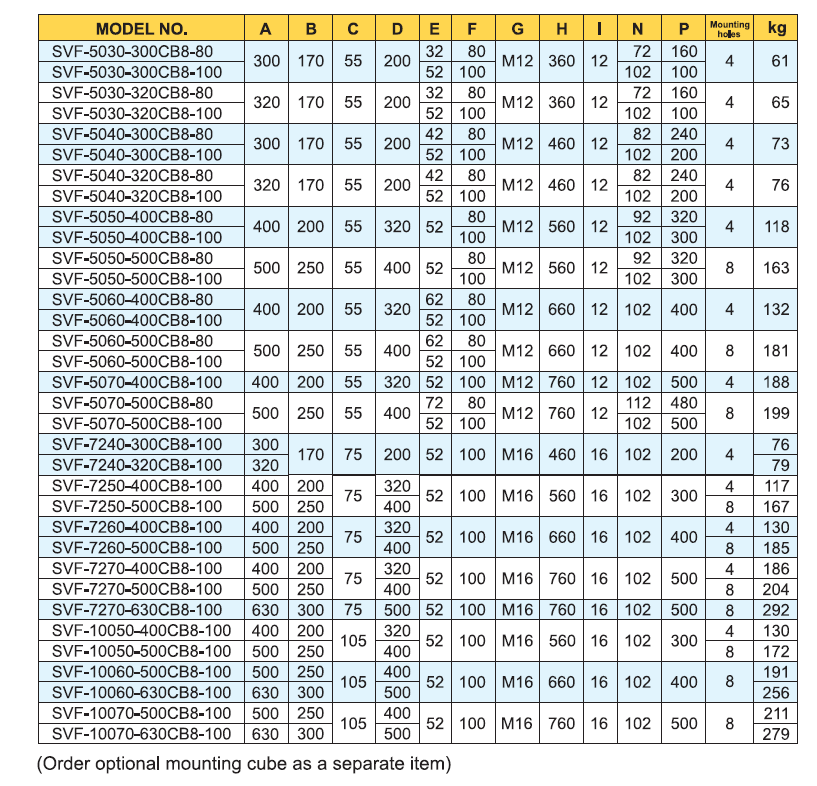

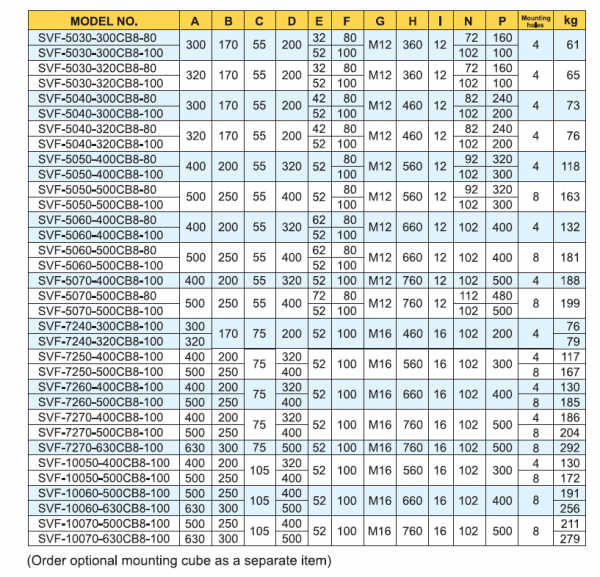

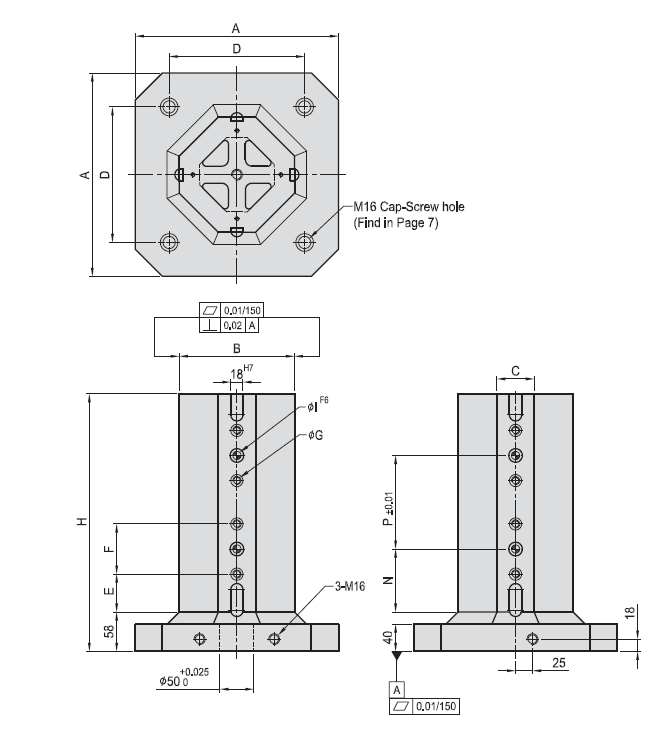

Dimensions
| # | Part No | Square base (mm) | Total Height (mm) | Core Thickness (mm) | Accepted vices | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SVF-5030-300CB8-80 | 300 | 360 | 170 | SVF-A-5030-80 |
|
£2,011.34 | ||
| 2 | SVF-5030-300CB8-100 | 300 | 360 | 170 | SVF-A-5030-100 |
|
n/a | ||
| 3 | SVF-5030-320CB8-80 | 320 | 360 | 170 | SVF-A-5030-80 |
|
£2,091.84 | ||
| 4 | SVF-5030-320CB8-100 | 320 | 360 | 170 | SVF-A-5030-100 |
|
n/a | ||
| 5 | SVF-5040-300CB8-80 | 300 | 460 | 170 | SVF-A-5040-80 |
|
£2,133.84 | ||
| 6 | SVF-5040-300CB8-100 | 300 | 460 | 170 | SVF-A-5040-100 |
|
£2,142.00 | ||
| 7 | SVF-5040-320CB8-80 | 320 | 460 | 170 | SVF-A-5040-80 |
|
£2,025.34 | ||
| 8 | SVF-5040-320CB8-100 | 320 | 460 | 170 | SVF-A-5040-100 |
|
£2,025.34 | ||
| 9 | SVF-5050-400CB8-80 | 400 | 560 | 200 | SVF-A-5050-80 |
|
£2,686.84 | ||
| 10 | SVF-5050-400CB8-100 | 400 | 560 | 200 | SVF-A-5050-100 |
|
£2,686.84 | ||
| 11 | SVF-5050-500CB8-80 | 500 | 560 | 250 | SVF-A-5050-80 |
|
£3,218.84 | ||
| 12 | SVF-5050-500CB8-100 | 500 | 560 | 250 | SVF-A-5050-100 |
|
£3,218.84 | ||
| 13 | SVF-5060-400CB8-80 | 400 | 660 | 200 | SVF-A-5060-80 |
|
£3,213.00 | ||
| 14 | SVF-5060-400CB8-100 | 400 | 660 | 200 | SVF-A-5060-100 |
|
£3,213.00 | ||
| 15 | SVF-5060-500CB8-80 | 500 | 660 | 250 | SVF-A-5060-80 |
|
£4,124.17 | ||
| 16 | SVF-5060-500CB8-100 | 500 | 660 | 250 | SVF-A-5060-100 |
|
£4,124.17 | ||
| 17 | SVF-5070-400CB8-100 | 400 | 760 | 200 | SVF-A-5070-100 |
|
£3,517.50 | ||
| 18 | SVF-5070-500CB8-80 | 500 | 760 | 250 | SVF-A-5070-80 |
|
£4,117.17 | ||
| 19 | SVF-5070-500CB8-100 | 500 | 760 | 250 | SVF-A-5070-100 |
|
£4,117.17 | ||
| 20 | SVF-7240-300CB8-100 | 300 | 460 | 170 | SVF-A-7240-100 |
|
£2,203.84 | ||
| 21 | SVF-7240-320CB8-100 | 320 | 460 | 170 | SVF-A-7240-100 |
|
£2,741.67 | ||
| 22 | SVF-7250-400CB8-100 | 400 | 560 | 200 | SVF-A-7250-100 |
|
£2,847.84 | ||
| 23 | SVF-7250-500CB8-100 | 500 | 560 | 250 | SVF-A-7250-100 |
|
£3,445.17 | ||
| 24 | SVF-7260-400CB8-100 | 400 | 660 | 200 | SVF-A-7260-100 |
|
£2,969.17 | ||
| 25 | SVF-7260-500CB8-100 | 500 | 660 | 250 | SVF-A-7260-100 |
|
£3,589.84 | ||
| 26 | SVF-7270-400CB8-100 | 400 | 760 | 200 | SVF-A-7270-100 |
|
£3,283.00 | ||
| 27 | SVF-7270-500CB8-100 | 500 | 760 | 250 | SVF-A-7270-100 |
|
£4,180.17 | ||
| 28 | SVF-7270-630CB8-100 | 630 | 760 | 300 | SVF-A-7270-100 |
|
£4,618.84 | ||
| 29 | SVF-10050-400CB8-100 | 400 | 560 | 200 | SVF-A-10050-100 |
|
£3,430.00 | ||
| 30 | SVF-10050-500CB8-100 | 500 | 560 | 250 | SVF-A-10050-100 |
|
£3,570.00 | ||
| 31 | SVF-10060-500CB8-100 | 500 | 660 | 250 | SVF-A-10060-100 |
|
£3,893.17 | ||
| 32 | SVF-10060-630CB8-100 | 630 | 660 | 300 | SVF-A-10060-100 |
|
£5,063.34 | ||
| 33 | SVF-10070-500CB8-100 | 500 | 760 | 250 | SVF-A-10070-100 |
|
£4,300.34 | ||
| 34 | SVF-10070-630CB8-100 | 630 | 760 | 300 | SVF-A-10070-100 |
|
£5,176.50 |
