SVF-X 4-Sided Cube
To Suit Indexing Tables
Key Features
- Maximise your machining envelope
- High precision and high clamping force
- Wide range of accessories for flexibility
- Multiple operations on multiple workpieces
Description
The SVF-X range of Indexing tables combine the flexibility of multi component vices with the productivity of indexable workholding. They can be mounted between a rotary table and a tail support and will accept a range of SVF-A flexible vices. All SVF-X tables will accept 4 vices at a time with each vice holding multiple components for the ultimate in productivity in a vertical machining centre. It is recommended that the SVF-A range of vices are mounted as they are easier to load when vertical. These indexing tables are manufactured from S45C carbon steel and the core thickness is maintained to a tolerance of +/-0.005mm. For self contained solutions please see the SVFX****BP series of specially made baseplates. Please contact us with the specifications of your rotary table and end support when ordering.
Estimated delivery: On Request

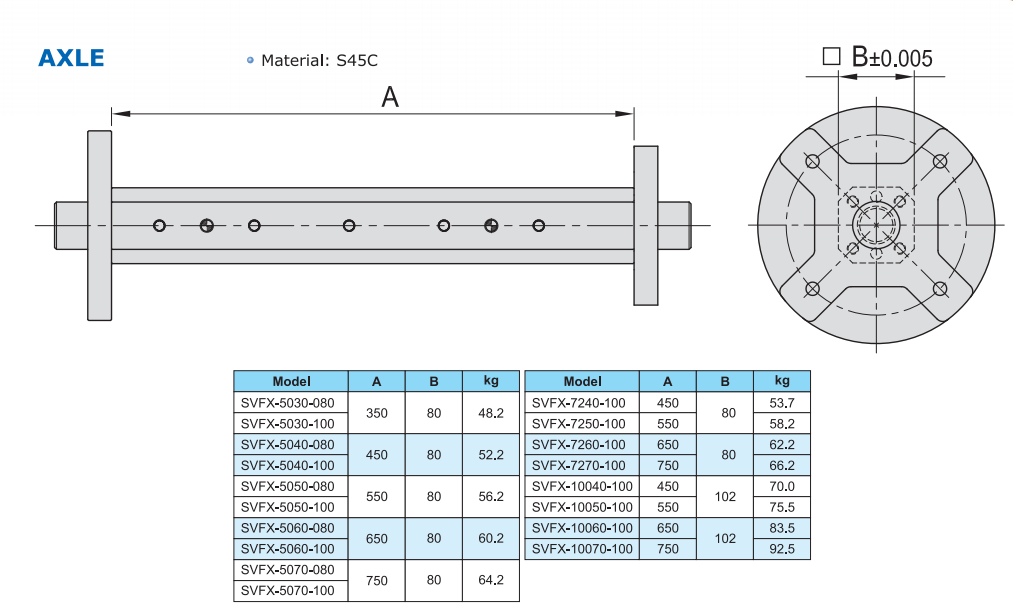

Dimensions
| # | Part No | Core length (mm) | Core Thickness (mm) | Accepted vices | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | SVFX-5030-080 | 350 | 80 | SVF-A-5030-080 |
|
£1,519.00 | ||
| 2 | SVFX-5030-100 | 350 | 80 | SVF-A-5030-100 |
|
£1,519.00 | ||
| 3 | SVFX-5040-080 | 450 | 80 | SVF-A-5040-080 |
|
£1,706.84 | ||
| 4 | SVFX-5040-100 | 450 | 80 | SVF-A-5040-100 |
|
£1,706.84 | ||
| 5 | SVFX-5050-080 | 550 | 80 | SVF-A-5050-080 |
|
£1,894.67 | ||
| 6 | SVFX-5050-100 | 550 | 80 | SVF-A-5050-100 |
|
£1,894.67 | ||
| 7 | SVFX-5060-080 | 650 | 80 | SVF-A-5060-080 |
|
£2,081.34 | ||
| 8 | SVFX-5060-100 | 650 | 80 | SVF-A-5060-100 |
|
£2,081.34 | ||
| 9 | SVFX-5070-080 | 750 | 80 | SVF-A-5070-080 |
|
£2,420.84 | ||
| 10 | SVFX-5070-100 | 750 | 80 | SVF-A-5070-100 |
|
£2,420.84 | ||
| 11 | SVFX-7240-100 | 450 | 80 | SVF-A-7240-100 |
|
£2,047.50 | ||
| 12 | SVFX-7250-100 | 550 | 80 | SVF-A-7250-100 |
|
£2,047.50 | ||
| 13 | SVFX-7260-100 | 650 | 80 | SVF-A-7260-100 |
|
£2,496.67 | ||
| 14 | SVFX-7270-100 | 750 | 80 | SVF-A-7270-100 |
|
£2,905.00 | ||
| 15 | SVFX-10040-100 | 450 | 102 | SVF-A-10040-100 |
|
£2,300.67 | ||
| 16 | SVFX-10050-100 | 550 | 102 | SVF-A-10050-100 |
|
£2,457.00 | ||
| 17 | SVFX-10060-100 | 650 | 102 | SVF-A-10060-100 |
|
£2,996.00 | ||
| 18 | SVFX-10070-100 | 750 | 102 | SVF-A-10070-100 |
|
£3,486.00 |
