Swing Clamp CP10
For Easy Loading when Top Clamping
Key Features
- Swing clamps allow the Workholding to be moved out of the way for Easy Loading
- Ground and Threaded Toe allows for use of Inserts

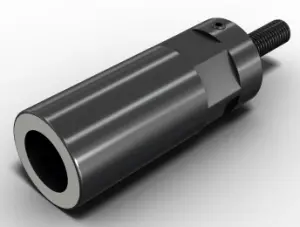

- Can be used with CP09 to Increase Height
- Hardened and Chemi-Blacked for durability
Description
Swing Clamp CP10 are useful for supplying a good amount of holding force from a clamp using a small amount of surface area. Like most of Leave's components it can be used well with the rest of the fixturing components and base plates. Swing clamps allow for the workholding to be swung out the way to allow for easy loading of components.
Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Main thread | Height (mm) | Reach from centre (mm) | End thread | Body diameter (mm) | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | CP10-1022 | M10 | 75 | 30 | - | 22 | £23.69 | ||
| 1 | CP10-1225 | M12 | 87 | 50 | M12 | 25 | £28.70 | ||
| 1 | CP10-1632 | M16 | 96 | 60 | M12 | 32 | £41.54 |
